SELECT A DIAGRAM

Diagram for 01 - 34526 Transmission Assy
01 - 34526 Transmission Assy

Diagram for 02 - Agitator & Drive Bell
02 - Agitator & Drive Bell

Diagram for 03 - Brg Hsg/brake/pulley & Pivot Dome
03 - Brg Hsg/brake/pulley & Pivot Dome

Diagram for 04 - Cab Top/loading Dr & Ctrl Hood Rear Pan
04 - Cab Top/loading Dr & Ctrl Hood Rear Pan

Diagram for 05 - Clothes Guard/washtub/lint Filter & Hub
05 - Clothes Guard/washtub/lint Filter & Hub

Diagram for 06 - Drain Hose & Siphon Break
06 - Drain Hose & Siphon Break

Diagram for 07 - Front Panel, Base & Cabinet Assy
07 - Front Panel, Base & Cabinet Assy

Diagram for 08 - Graphic Panel, Control Hood & Controls
08 - Graphic Panel, Control Hood & Controls

Diagram for 09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt
09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt

Diagram for 10 - Mixing Valve Assy
10 - Mixing Valve Assy

Diagram for 11 - Mixing Valve, Motor Conn Blocks & Term
11 - Mixing Valve, Motor Conn Blocks & Term

Diagram for 12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy
12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy

Diagram for 13 - Outer Tub, Cover & Pressure Hose
13 - Outer Tub, Cover & Pressure Hose

Diagram for 14 - Out-of-balance Switch
14 - Out-of-balance Switch

Diagram for 15 - Power Cord & Terminals
15 - Power Cord & Terminals

Diagram for 16 - Special Tools
16 - Special Tools

Diagram for 17 - Special Tools (continued)
17 - Special Tools (continued)

Diagram for 18 - Transmission Assy & Balance Ring
18 - Transmission Assy & Balance Ring


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 21685 Bumper In-Stock Immediately $ 6.95

2 33541HP Lid,w/instructions Appelez-nous -
2 33541LP Lid,w/instructions Appelez-nous -
2 33541WP Lid,w/instructions Appelez-nous -
3 34903 Panel, Back Hood (use 37782) Appelez-nous -
4 WPW10119828 Screw   (Replaces: 34337) In-Stock Immediately $ 6.47

5 34338 Gasket,hinge Special Order $ 9.22

6 33446 Bushing In-Stock Immediately $ 6.95

7 WP90767 Screw,8b-18 X 3/8 Ind   (Replaces: 23962) In-Stock Immediately $ 7.04

8 Y00000000 See Note Ground Wire, Green Appelez-nous -
9 Sub. To D513139P Screw,10b-16 X 1/2 Hex   (Replaces: 52909) Appelez-nous -
10 21903 Strain Relief Appelez-nous -
11 24903 Sticker,disconnect Pow Appelez-nous -
12 34902WP Assy,top-amana Appelez-nous -
12 34902HP Assy,top-domestic W/bleach Appelez-nous -
12 34902LP Assy,top-amana Appelez-nous -
13 56534 Barrel,support Appelez-nous -
14 36034 Bracket,director-module Appelez-nous -
15 DE81-05207A Screw,8-18x3/8 Phil Flt Hd   (Replaces: 36035) Special Order $ 67.62

16 WP27001200 Screw,10-24t X 3/4 Sem   (Replaces: Y31644) Special Order $ 6.91

17 Y00000000 See Note Cabinet Appelez-nous -
18 34776 Dispenser,bleach Special Order $ 14.04

19 DE81-10050A Hinge, Lid R   (Replaces: 36437) Special Order $ 33.80

20 36438 Hinge, Lid Left Special Order $ 8.06


    View Diagram in Separate Window     Print Icon   Print Part List

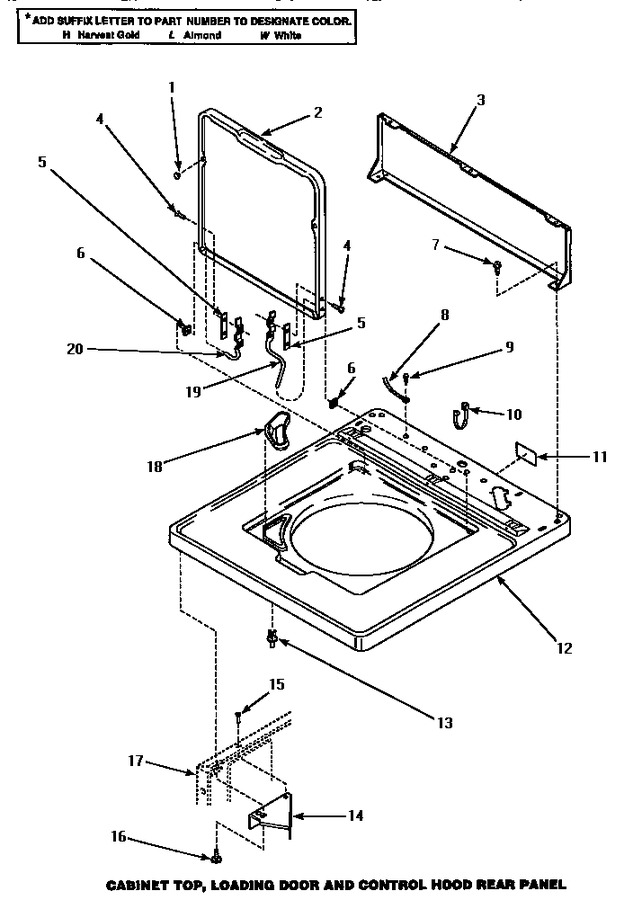

Diagram for AWM372W
