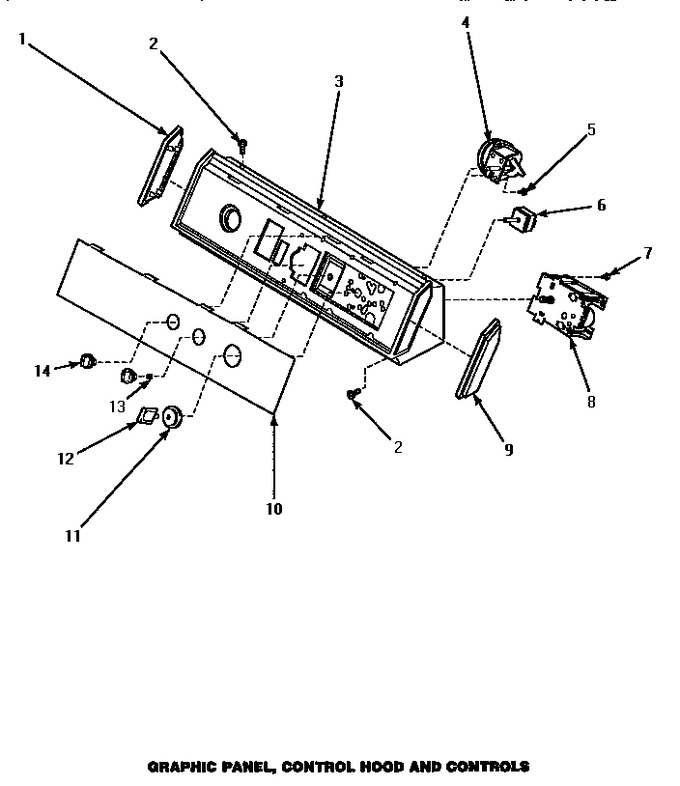

08 - Graphic Panel, Control Hood & Controls


09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mixing Valve Assy


11 - Mixing Valve, Motor Conn Blocks & Term


12 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


13 - Outer Tub, Cover & Pressure Hose


14 - Out-of-balance Switch


15 - Power Cord & Terminals


16 - Special Tools


17 - Special Tools (continued)


18 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31249		Cap,end-l.h.-chrome		Appelez-nous	-
2	32993		Screw,no.8abx3/4 Pozidri		Appelez-nous	-
3	36295		Ass`y, Hood & Mtg Plate		Appelez-nous	-
4	201927P		Pressure Switch   (Replaces: 36045)				$ 85.88
5	31260		Screw, No.8 X 3/8 Ind H				$ 2.68
6	21300		Switch,temperature				$ 45.99
7	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
8	31239P		Timer,3 Cycle   (Replaces: 31239)			Immediately	$ 550.63
9	31248		Cap,end-r.h.-chrome		Appelez-nous	-
10	35239		Panel,graphic		Appelez-nous	-
11	33818		Timer Knob Skirt		Appelez-nous	-
12	33898		Timer Knob White		Appelez-nous	-
13	57584		Nut		Appelez-nous	-
14	WP36701W		Assy,knob-rotary-white   (Replaces: 33688)			Immediately	$ 44.31
	NOTE:		Outer Tub Cover And Gasket Tool Is For Removal Of 36025 Outer Tub Cover From Outer Tub And Installation Of 32857 Gasket In Outer Tub Cover.		Appelez-nous	-
