SELECT A DIAGRAM

01 - Cover Sheet

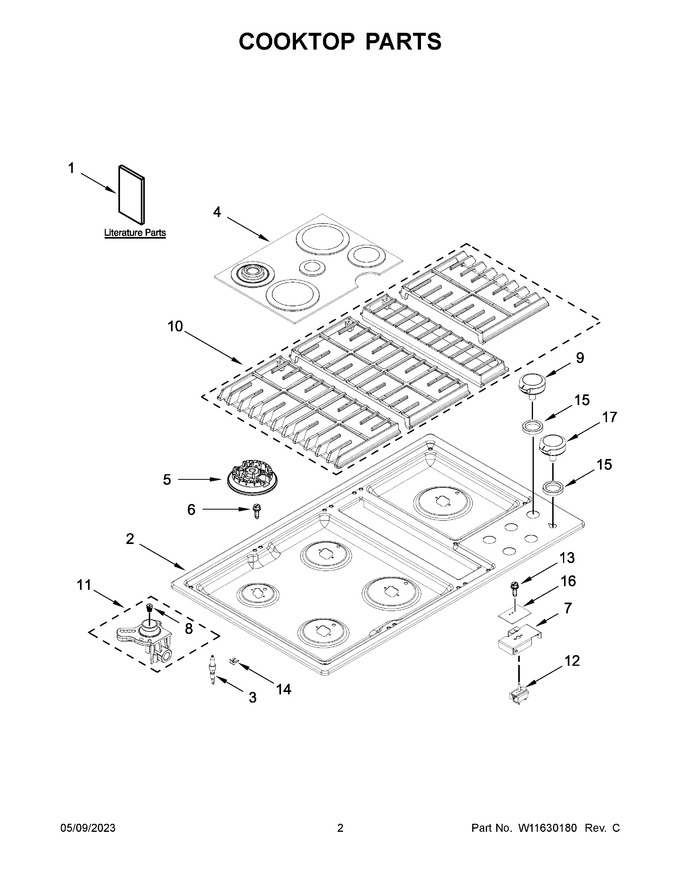

02 - Cooktop Parts


03 - Blower Unit Parts


04 - Burner Box Parts


05 - Optional Parts Not Included


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11468900		Owner's Manual		Appelez-nous	-
2	W11051501		Top, Main (stainless)   (Replaces: W10842064)				$ 488.21
3	W11690659		Electrode (left Front)   (Replaces: W10876259)				$ 63.06
4	W11379294		Kit, Burner Cap   (Replaces: W10910375)			Immediately	$ 162.51
5	W11531097		Flame Spreader (left Front)   (Replaces: W10732969)				$ 69.56
6	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 12.63
7	W10814795		Bracket, Switch Mount		Appelez-nous	-
8	W10907868		Orifice (left Front)				$ 77.73
9	W11620703		Knob, Control (stainless)   (Replaces: W11514464)		Appelez-nous	-
10	W11369704		Grates, Cooktop (includes 4 Grates) (black)   (Replaces: W11241663)				$ 316.40
11	W10826754		Holder, Orifice (10k) ((left Front))				$ 90.98
12	W11676792		Switch, Blower   (Replaces: W10866564)				$ 57.40
13	7101P30960		Screw		Appelez-nous	-
14	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 10.71
15	W11240529		Bezel (stainless)   (Replaces: W10884725)				$ 52.88
16	W11508237		Seal, Downdraft Pad		Appelez-nous	-
17	W11084159		Knob, Fan (stainless)   (Replaces: W10884723)				$ 71.54
11A	W10826751		Holder, Orifice (5k) (left Rear)		Appelez-nous	-
11B	W10826753		Holder, Orifice (15k) (center Front)				$ 90.93
11C	W10827697		Holder, Orifice (12.5k) (center Rear)				$ 87.85
11D	W10826752		Holder, Orifice (17k) (right Rear)				$ 87.86
1A	W11466944		Quick Start Guide		Appelez-nous	-
1B	W11565420		Wiring Diagram		Appelez-nous	-
3A	W10905489		Electrode (left Rear)				$ 59.77
3B	W11688146		Electrode (center Front)   (Replaces: W10876260)				$ 25.62
3C	W10876261		Electrode (center Rear)				$ 59.67
3D	W10876262		Electrode (right Rear)				$ 49.95
5A	W11531098		Flame Spreader (left Rear)   (Replaces: W10732968)				$ 69.19
5B	W11531096		Flame Spreader (center Front & Right Rear)   (Replaces: W10732971)				$ 70.17
5C	W11084063		Spreader, Flame (center Rear)   (Replaces: W10732970)				$ 108.32
8A	W11677633		Orifice (5k) (left Rear)   (Replaces: W10849719)				$ 84.99
8B	W10907866		Orifice (center Front)				$ 77.73
8C	W10907867		Orifice (center Rear)		Appelez-nous	-
8D	W10907865		Orifice (right Rear)				$ 77.73
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11083838		Kit, Lp Orifice   (Replaces: W11022463)				$ 142.73
NI	W10831977		Cord, Power				$ 96.50
NI	W11465122		Harness, Main		Appelez-nous	-
NI	W11465762		Harness, Jumper				$ 28.61
NI	W10909126		Kit, Plenum Screw			Immediately	$ 18.98
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	7101P46060		Screw, Grounding		Appelez-nous	-
NI	W11190478		Harness, Blower				$ 101.40
