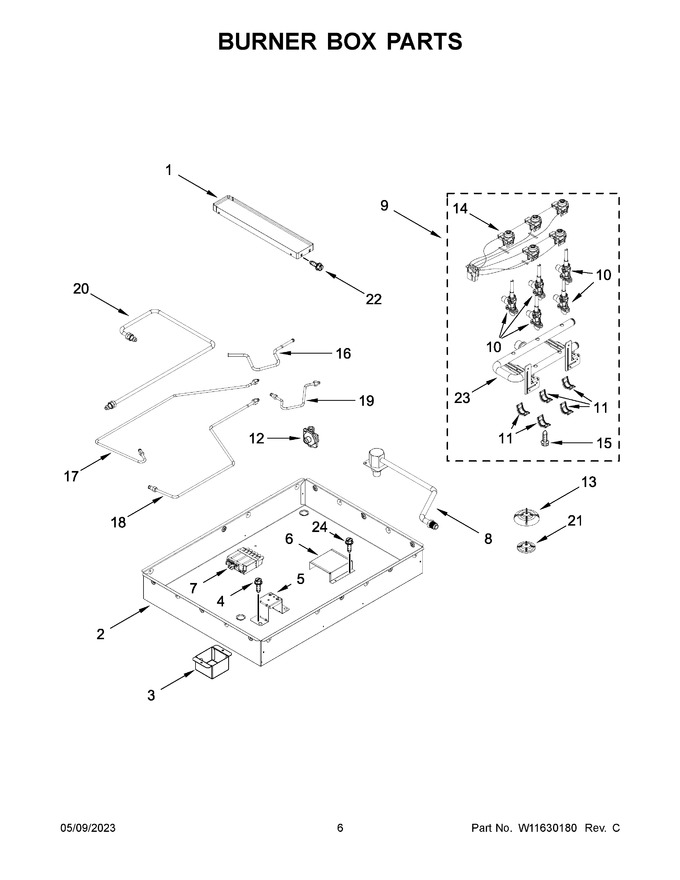

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10235990		Tray, Spill				$ 73.51
2	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
3	W10258697		Cover, Blower Motor Harness			Immediately	$ 81.29
4	7101P42660		Screw		Appelez-nous	-
5	W10811211		Bracket, Hat		Appelez-nous	-
6	W10894861		Cover, Spark		Appelez-nous	-
7	WPW10475150		Module, Spark   (Replaces: W10475150)			Immediately	$ 219.54
8	W10361756		Fitting,gas Supply			Immediately	$ 158.50
9	W11717047		Manifold Assembly   (Replaces: W11512356)				$ 260.57
10	W11511837		Valve (left Front & Center Rear)		Appelez-nous	-
11	W10949105		Bracket, Saddle Valve				$ 19.50
12	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
13	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 17.40
14	W11752206		Harness, Switch   (Replaces: W11537719)				$ 48.13
15	W11577790		Screw		Appelez-nous	-
16	W11083758		Assembly, Tube (left Front)   (Replaces: W10827689)		Appelez-nous	-
17	W11083760		Assembly, Tube (left Rear)   (Replaces: W10827690)		Appelez-nous	-
18	W11083761		Assembly, Tube (center Front)   (Replaces: W10827691)		Appelez-nous	-
19	W11083763		Assembly, Tube (center Rear)   (Replaces: W10827692)				$ 150.34
20	W11083765		Assembly, Tube (right Rear)   (Replaces: W10827693)		Appelez-nous	-
21	W11508234		Seal, Downdraft Shaft		Appelez-nous	-
22	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 6.47
23	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
24	W10852658		Screw, Bracket   (Replaces: 3400804)		Appelez-nous	-
10A	W11511838		Valve (left Rear)		Appelez-nous	-
10B	W11511836		Valve (center Front & Right Rear)			Immediately	$ 82.89
