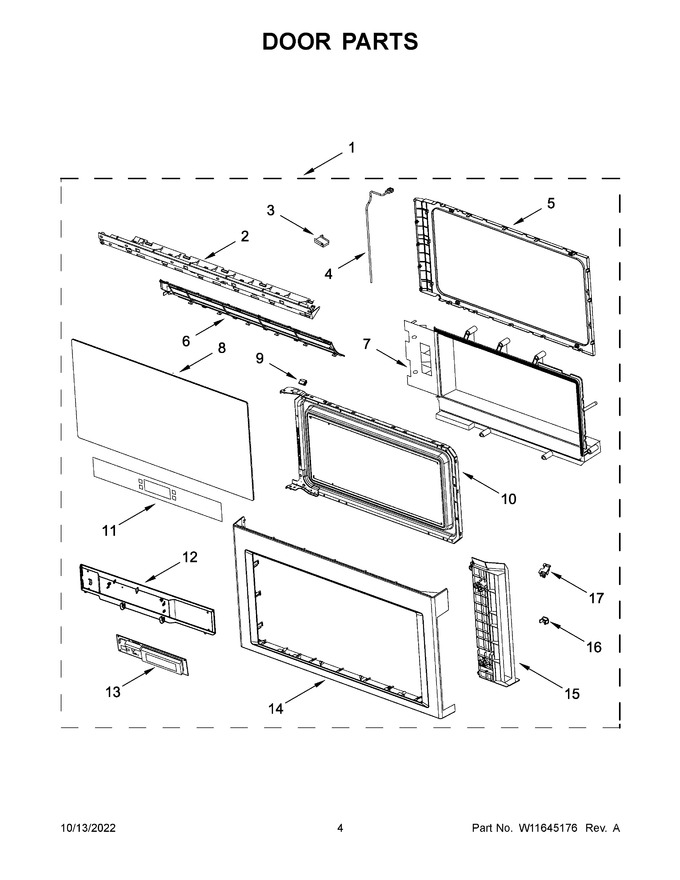

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11643340 | Door, Complete (white) |
|
- | |||||
| 2 | W10476546 | Bracket, Door |
|
- | |||||
| 3 | W10770971 | Bracket, Door Cable |
|
- | |||||
| 4 | W11320318 | Cable, Door User Interface |
|
$ 131.29 | |||||
| 5 | W10897612 | Frame, Inner |
|
$ 127.74 | |||||
| 6 | W10570992 | Frame, Back Decorating (white) |
|
- | |||||
| 7 | W11643345 | Cover, Pcba |
|
- | |||||
| 8 | W11600911 | Glass, Outer Door |
|
- | |||||
| 9 | W10643448 | Stopper, Door |
|
$ 19.76 | |||||
| 10 | W11045518 | Body, Door (with Glass) (Replaces: W10891969) |
|
$ 211.76 | |||||
| 11 | W11646747 | Pcba, Touch Sensor (Replaces: W11381432) |
|
$ 136.03 | |||||
| 12 | W11602074 | Holder, Pcba |
|
- | |||||
| 13 | W11623075 | Pcba, User Interface |
|
- | |||||
| 14 | W11646746 | Assembly, Outer Door (white) (Replaces: W11206125) |
|
- | |||||
| 15 | W11646744 | Handle, Pocket Door (Replaces: W10909200) |
|
- | |||||
| 16 | W10571119 | Cover, Screw (white) |
|
- | |||||
| 17 | W10770972 | Holder, Door Cable |
|
- | |||||
| 14A | W11646759 | Assembly, Outer Door (black) (Replaces: W11206123) |
|
- | |||||
| 16A | W10542546 | Cover, Screw (black) |
|
$ 76.13 | |||||
| 1A | W11643348 | Door, Complete (black) |
|
- | |||||
| 6A | W10476550 | Frame, Back Decorating (black) |
|
- |
