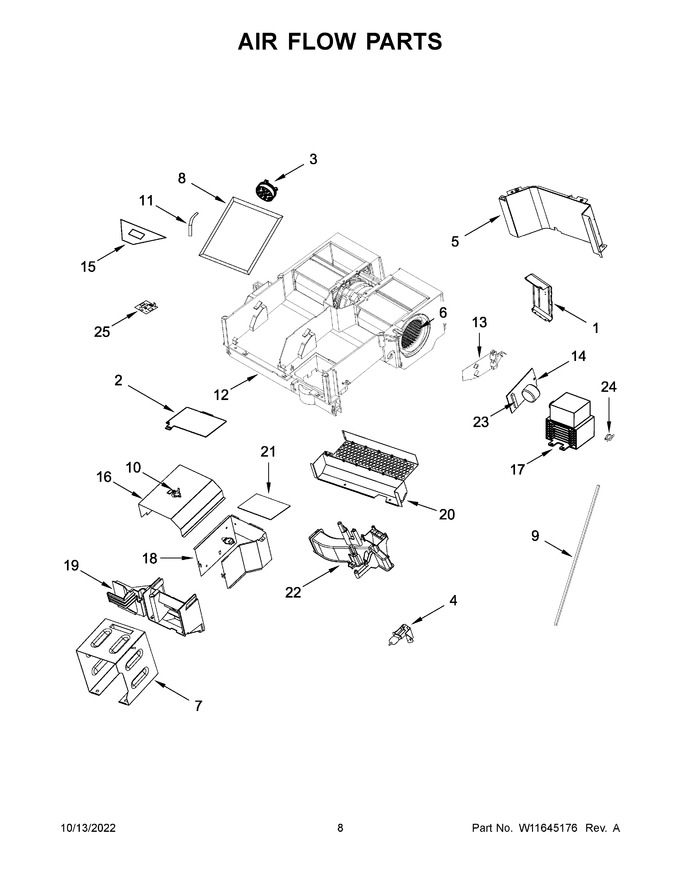

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11300398 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 7.87 | |||||
| 3 | W10557536 | Sensor, Humidity |
|
$ 109.12 | |||||
| 4 | W11409090 | Lamp, Halogen |
|
$ 8.57 | |||||
| 5 | W10533487 | Plate, Air Guide |
|
- | |||||
| 6 | W11613599 | Motor, Fan (Replaces: W11409088) |
|
Immediately | $ 171.78 | ||||
| 7 | W10712444 | Housing, Damper |
|
$ 82.58 | |||||
| 8 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 17.33 | ||||
| 9 | W10571180 | Seal, Foam |
|
$ 16.39 | |||||
| 10 | W11661583 | Thermostat, Cavity (Replaces: W10654514) |
|
$ 54.26 | |||||
| 11 | W10557537 | Sensor, Convection |
|
$ 71.07 | |||||
| 12 | W10632409 | Baseplate, Air Guide |
|
$ 87.74 | |||||
| 13 | W11293488 | Cover, Right Duct |
|
$ 72.07 | |||||
| 14 | W10572027 | Board, Filter |
|
Immediately | $ 69.98 | ||||
| 15 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 16 | W10533112 | Outlet, Cavity (back) |
|
- | |||||
| 17 | W11708328 | Magnetron (Replaces: W10754517) |
|
$ 134.02 | |||||
| 18 | W10533113 | Duct, Cavity (rear) |
|
- | |||||
| 19 | W10892384 | Duct, Cavity (front) (for White Model) |
|
- | |||||
| 20 | W10715053 | Shield, Finger |
|
- | |||||
| 21 | W10531724 | Glass, Lamp |
|
Immediately | $ 29.90 | ||||
| 22 | W10758887 | Assembly, Airguide Grille |
|
- | |||||
| 23 | W11707984 | Fuse (Replaces: W10138793) |
|
Immediately | $ 41.27 | ||||
| 24 | W11553234 | Thermostat, Magnetron (Replaces: W10591803) |
|
$ 37.45 | |||||
| 25 | WPW10565479 | Board, Door Control (Replaces: W10565479) |
|
$ 256.33 | |||||
| 19A | W10892383 | Duct, Cavity (front) (for Black Model) |
|
- |
