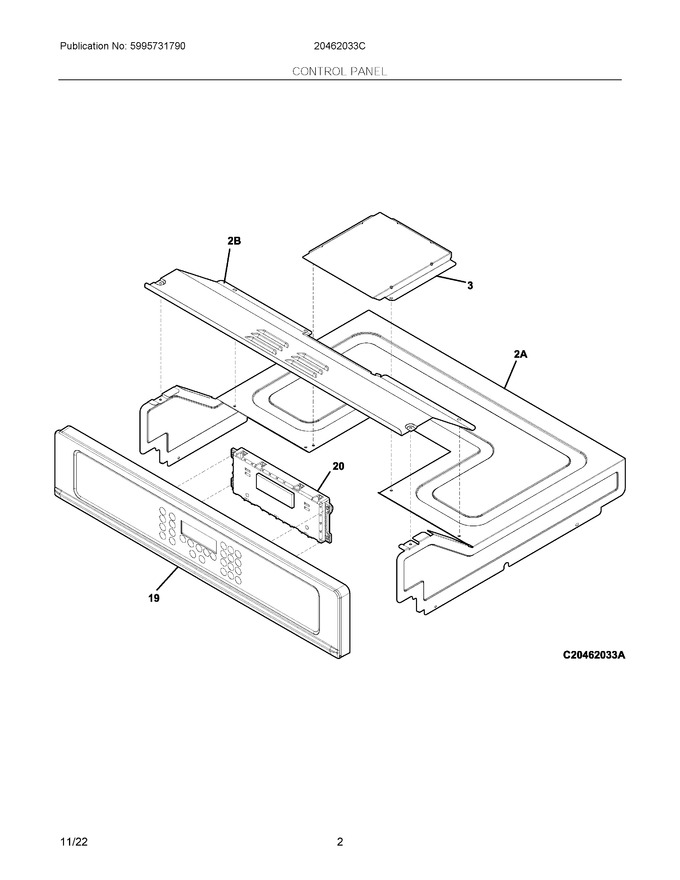

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box, Fan Service |
|
- | |||||
| 19 | 5304526779 | Control Panel, Assembly, Stainless, W/touchpad, And Controller |
|
$ 359.53 | |||||
| 20 | 316474955 | Controller, Electronic, Mars |
|
$ 166.71 | |||||
| 21 | 139028002 | Bracket, Mounting (Replaces: 139028001) |
|
$ 38.37 | |||||
| 97 | 5304516862 | Board, Pc, Oven Relay |
|
Immediately | $ 330.67 | ||||
| 21A | 809191301 | Bracket, Ovc Board Mtg. |
|
- | |||||
| 2A | 139017901 | Cover, Oven Top |
|
$ 127.56 | |||||
| 2B | 139017801 | Cover, Control Access |
|
$ 59.16 | |||||
| NI | 318579001 | Bracket, Wire |
|
$ 11.08 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NIA | 5303323129 | Screw, 8 X 0.750 |
|
- |
