SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body

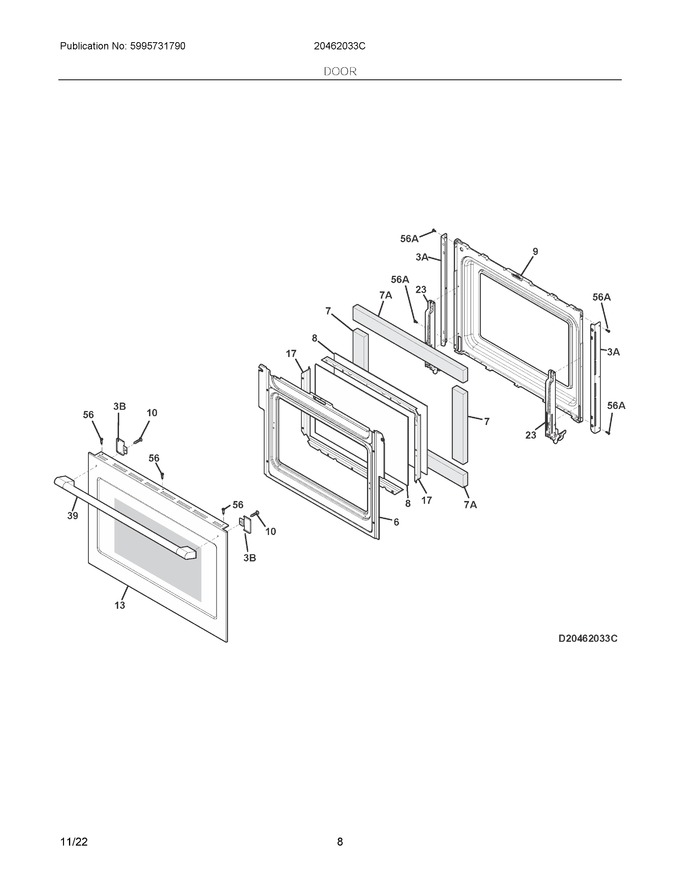

04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006905		Baffle, Door				$ 121.34
7	318372017		Insulation, Door				$ 16.30
8	316117507		Glass, Oven Door, Inner		Appelez-nous	-
9	139000411		Liner, Oven Door				$ 152.43
10	5304414648		Screw, Handle Mtg.				$ 14.18
13	5304521957		Door Assembly, Outer, Stainless/black		Appelez-nous	-
17	318264731		Spacer, Glass, (2)				$ 72.05
23	316575917		Hinge, Oven Door, Red				$ 67.33
39	5304525060		Handle, Door, Stainless, W/set Screws		Appelez-nous	-
56	5303311306		Screw, 8-32 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
3B	318262104		Cover, Rear Door, Black, (2)				$ 24.99
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	318372016		Insulation, Door				$ 17.72
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
