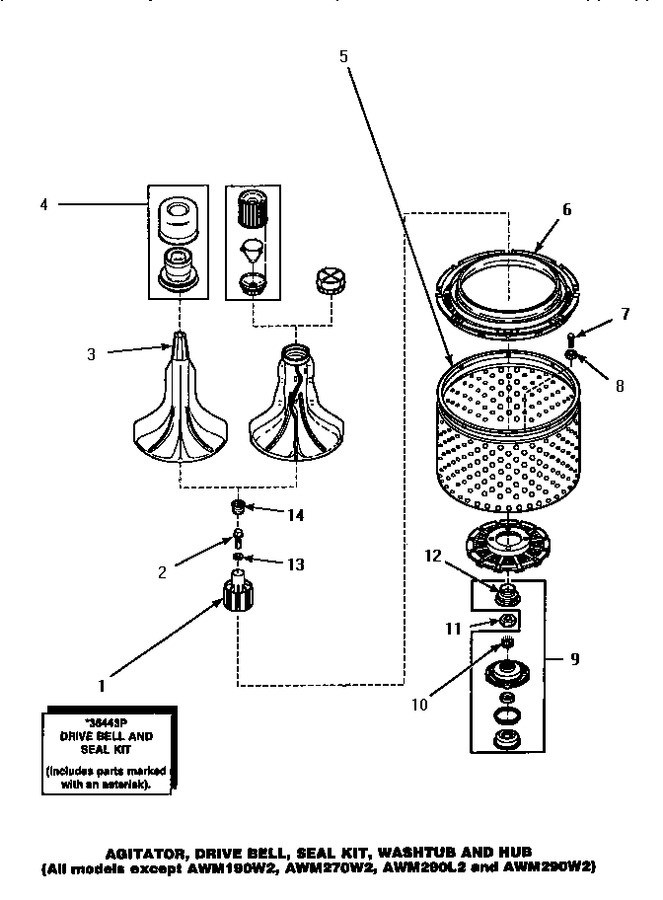

03 - Agitator/drive Bell/seal Kit/tub & Hub


04 - Brg Hsg/brake/pulley & Pivot Dome


05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Drain Hose & Siphon Break


07 - Front Panel, Base Assy & Cabinet Assy


08 - Graphic Panel, Control Hood & Control


09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mix Vlv/mtr Conn Blks/term & Extractor


11 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


12 - Outer Tub, Cover And Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Drive Bell		Appelez-nous	-
2	34288		Shoulder Screw		Appelez-nous	-
3	33514		Agitator		Appelez-nous	-
4	33510		Assy,dispenser-fabric		Appelez-nous	-
5	33501P		Washtub Stainless Steel All		Appelez-nous	-
5	33503P		Washtub W Porcelain		Appelez-nous	-
6	35035		Guard, Clothes				$ 31.15
7	WPW10116787		Cap Screw   (Replaces: 27202)				$ 19.26
8	28094		Gasket		Appelez-nous	-
9	646P3A		Hub & Seal Kit   (Replaces: 495P3)				$ 313.62
10	29728		Splined Insert			Immediately	$ 6.95
11	Y29220		Locknut		Appelez-nous	-
12	DE81-10150A		Seal   (Replaces: 36425)				$ 128.20
13	36472		O-ring				$ 23.37
14	DE81-08662A		Plug   (Replaces: 36511)				$ 28.04
NI	39508P		Drive Bell & Seal Kit   (Replaces: 36443P)			Immediately	$ 45.90
