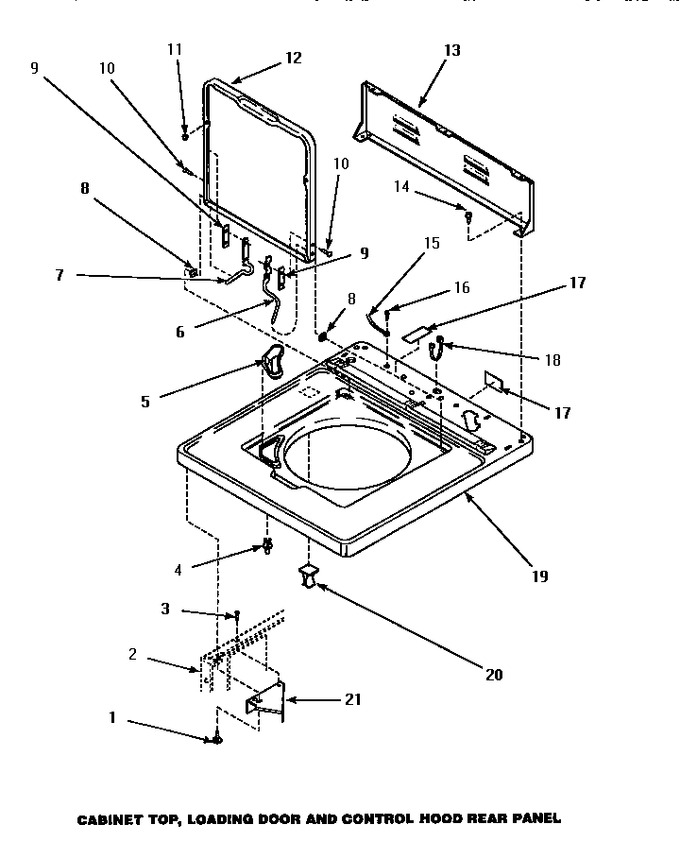

05 - Cab Top/loading Dr & Ctrl Hood Rear Pan


06 - Drain Hose & Siphon Break


07 - Front Panel, Base Assy & Cabinet Assy


08 - Graphic Panel, Control Hood & Control


09 - Inlet/fill Hose & Mixing Vlv Mtg Brkt


10 - Mix Vlv/mtr Conn Blks/term & Extractor


11 - Motor, Mtg Brkt, Belt, Pump & Idler Assy


12 - Outer Tub, Cover And Pressure Hose


13 - Out-of-balance Switch


14 - Power Cord & Terminals


15 - Special Tools


16 - Special Tools


17 - Transmission Assy & Balance Ring


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP27001200		Screw,10-24t X 3/4 Sem   (Replaces: Y31644)				$ 6.91
2	Y00000000		See Note Cabinet Assy -- (see Front Panel, Base And Cabinet Assy Page)		Appelez-nous	-
3	DE81-05207A		Screw,8-18x3/8 Phil Flt Hd   (Replaces: 36035)				$ 67.62
4	56534		Barrel,support		Appelez-nous	-
5	34776		Dispenser,bleach				$ 14.04
6	DE81-10050A		Hinge, Lid R   (Replaces: 36437)				$ 33.80
7	36513		Hinge, Left				$ 16.85
8	33446		Bushing			Immediately	$ 6.95
9	34338		Gasket,hinge				$ 9.22
10	WPW10119828		Screw   (Replaces: 34337)			Immediately	$ 6.47
11	21685		Bumper			Immediately	$ 6.95
12	33541LP		Lid,w/instructions		Appelez-nous	-
12	33541WP		Lid,w/instructions		Appelez-nous	-
13	34903		Panel, Back Hood (use 37782)		Appelez-nous	-
14	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
15	Y00000000		See Note Ground Wire		Appelez-nous	-
16	Sub. To D513139P		Screw,10b-16 X 1/2 Hex   (Replaces: 52909)		Appelez-nous	-
17	24903		Sticker,disconnect Pow		Appelez-nous	-
18	21903		Strain Relief		Appelez-nous	-
19	34902LP		Assy,top-amana		Appelez-nous	-
19	34902WP		Assy,top-amana		Appelez-nous	-
20	36519		Clip				$ 6.95
21	36034		Bracket,director-module		Appelez-nous	-
