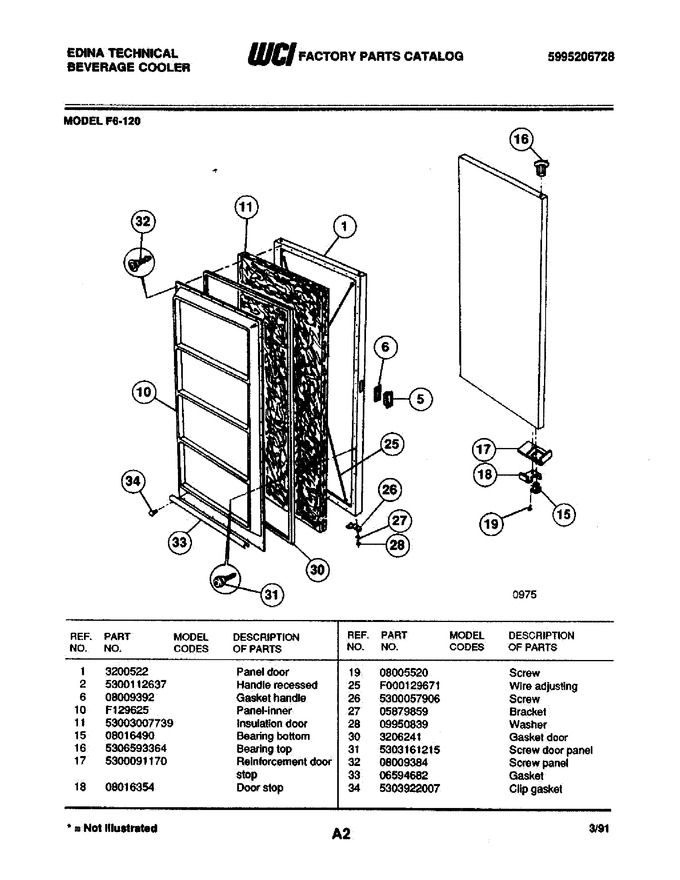

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3200522 | Panel Door |
|
- | |||||
| 2 | 5300112637 | Handle Recessed |
|
- | |||||
| 6 | 08009392 | Gasket Handle |
|
- | |||||
| 10 | F129625 | Panel-inner |
|
- | |||||
| 11 | 53003007739 | Insulation Door |
|
- | |||||
| 15 | 08016490 | Bearing-bottom |
|
- | |||||
| 16 | 5306593364 | Bearing-top |
|
- | |||||
| 17 | 5300091170 | Reinforcement, Door Stop |
|
- | |||||
| 18 | 08016354 | Door Stop |
|
$ 36.07 | |||||
| 19 | 08005520 | Screw-door Stop |
|
- | |||||
| 25 | F000129671 | Wire Adjusting |
|
- | |||||
| 26 | 5300057906 | Screw |
|
- | |||||
| 27 | 05879859 | Bracket |
|
- | |||||
| 28 | 09950839 | Washer |
|
- | |||||
| 30 | 3206241 | Gasket-door |
|
- | |||||
| 31 | 216858001 | Screw-door Panel (Replaces: 5303161215) |
|
Immediately | $ 10.85 | ||||
| 32 | 08009384 | Screw-panel |
|
- | |||||
| 33 | 06594682 | Gasket |
|
- | |||||
| 34 | 5303922007 | Clip Gasket |
|
$ 70.88 |
