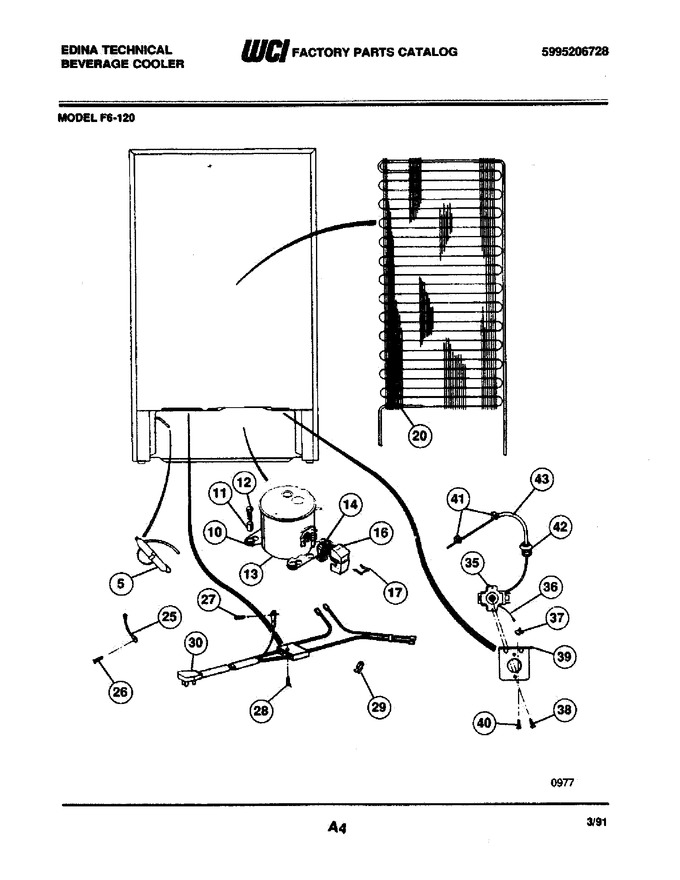

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	5303305677		Drier   (Replaces: 5300152474)			Immediately	$ 31.67
10	216498900		Grommet   (Replaces: 5308002681)				$ 13.01
11	5306594529		Sleeve				$ 10.34
12	08002679		Crew Compr Mtg		Appelez-nous	-
13	5300186041		Compressor Svce		Appelez-nous	-
14	5303200838		Relay & Overload		Appelez-nous	-
16	08016583		Cover-terminal		Appelez-nous	-
17	08016584		Clamp Cover		Appelez-nous	-
20	F124042		External Condenser (not Orig.equip.serv.repl.)		Appelez-nous	-
25	06594651		Wire, Ground		Appelez-nous	-
26	08037851		Screw Grounding				$ 3.57
27	08009412		Screw		Appelez-nous	-
28	08009384		Screw Strain Relief		Appelez-nous	-
29	05878556		Clip, Compressor Wire		Appelez-nous	-
30	3200801		Wiring Harness		Appelez-nous	-
35	3200802		Control Temp		Appelez-nous	-
37	5303208622		Clip Grounding		Appelez-nous	-
38	08003539		Screw Control To Bracket		Appelez-nous	-
39	5308016760		Bracket-control		Appelez-nous	-
40	08009412		Screw		Appelez-nous	-
41	3200804		Support Control Cap Tube		Appelez-nous	-
42	3200805		Plug Cap Tube		Appelez-nous	-
43	5303916855		Sleeve Control Cap Tube				$ 60.96
