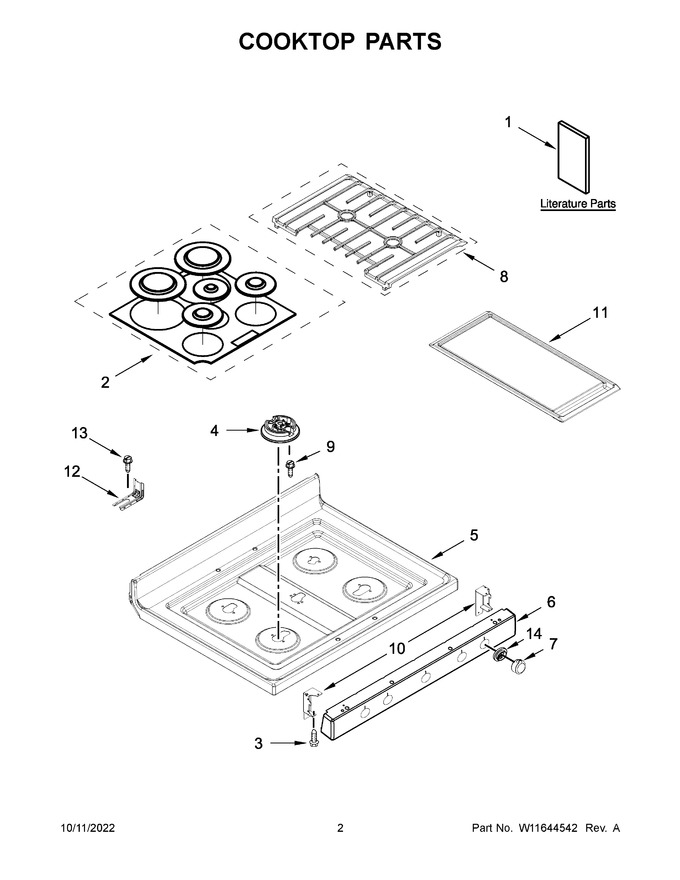

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Manifold Parts


06 - Door Parts


07 - Drawer Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11426598		Owners Manual		Appelez-nous	-
2	WPW10183374		Burner Cap Kit (black)   (Replaces: W10183374)				$ 171.59
3	WPW10067840		Screw   (Replaces: W10067840)				$ 6.98
4	WPW10515455		Assembly, Burner (17.5k) (left Front And Right Front)   (Replaces: W10515455)				$ 101.22
5	W11241183		Cooktop (stainless)   (Replaces: W10294800)				$ 488.81
6	W10724442		Panel, Manifold (stainless)				$ 300.65
7	W11030413		Knob (stainless)   (Replaces: W10786063)			Immediately	$ 68.58
8	W11382188		Grate Kit (set Of 2) (black)   (Replaces: W11241654)				$ 326.69
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 6.42
10	W10289096		Bracket, Manifold (left)				$ 131.91
11	W10432544		Griddle			Immediately	$ 51.00
12	W11447673		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.64
13	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
14	W10814133		Bezel (stainless (kit Of 5))   (Replaces: W10785119)			Immediately	$ 97.19
10A	W10106419		Bracket, Manifold (right)		Appelez-nous	-
1A	W11427469		Quick Start Guide		Appelez-nous	-
1B	W11565451		Tech Sheet		Appelez-nous	-
4A	WPW10515454		Assembly, Burner (9.5k) (left Rear And Center)   (Replaces: W10515454)				$ 99.21
4B	WPW10515453		Assembly, Burner (6k) (right Rear)   (Replaces: W10515453)				$ 85.10
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11161843		Harness, Bake And Broil   (Replaces: W10753750)				$ 185.62
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W10334923		Clip, Gas Wiring		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 76.28
NI	3196896		Clip, Wire		Appelez-nous	-
NI	W11461074		Harness, Main				$ 150.99
NI	W10809928		Harness, Cooktop				$ 177.39
