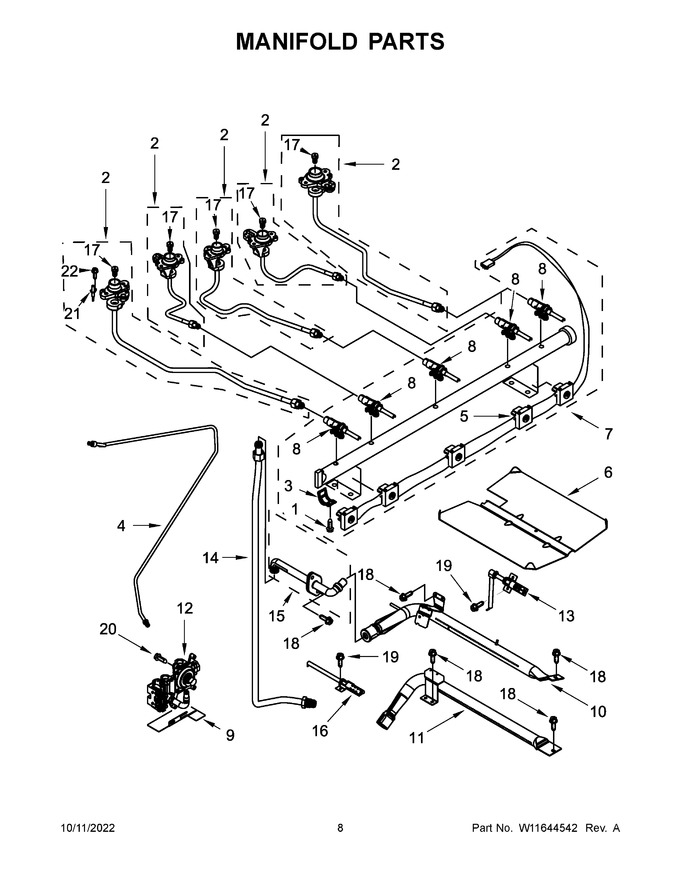

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.27 | |||||
| 2 | W11661571 | Assembly, Orifice Holder (15.5 K) (left Front) (Replaces: W10473934) |
|
$ 69.81 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 19.50 | |||||
| 4 | W10510125 | Tubing, Main Supply |
|
$ 187.42 | |||||
| 5 | W11772399 | Harness, Switch Spark (Replaces: W10811693) |
|
$ 74.00 | |||||
| 6 | 3601P33645 | Baffle, Broil Burner |
|
- | |||||
| 7 | W10811696 | Assembly, Manifold |
|
$ 324.02 | |||||
| 8 | W10748102 | Valve, Gas (left Front And Right Rear) |
|
Immediately | $ 246.81 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 79.76 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 78.56 | ||||
| 12 | W10919226 | Valve, Gas (Replaces: W10720102) |
|
Immediately | $ 162.50 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 93.58 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 162.70 | |||||
| 15 | W10776437 | Fitting, Broil |
|
$ 87.80 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 77.23 | ||||
| 17 | WPW10170510 | Orifice (15.5 K) (left Front) (Replaces: W10170510) |
|
$ 83.87 | |||||
| 18 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.23 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 21 | WPW10515459 | Electrode (left Front, Left Rear, Right Front) (center) (Replaces: W11194809) |
|
Immediately | $ 37.52 | ||||
| 22 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.12 | ||||
| 17A | WPW10170507 | Orifice (8k) (left Rear) (Replaces: W10170507) |
|
$ 83.87 | |||||
| 17B | W10178934 | Orifice (12k) (right Front) |
|
Immediately | $ 88.80 | ||||
| 17C | W10732136 | Orifice (5k) (right Rear) |
|
$ 80.94 | |||||
| 17D | W10251991 | Orifice (7k) (center) |
|
$ 77.80 | |||||
| 21A | WPW10515459 | Electrode (right Rear) (Replaces: W10515459) |
|
Immediately | $ 37.52 | ||||
| 2A | W11643127 | Assembly, Orifice Holder (9.5k) (left Rear) (Replaces: W10732140) |
|
$ 74.39 | |||||
| 2B | W11661950 | Assembly, Orifice Holder (15k) (right Front) (Replaces: W10732137) |
|
$ 72.26 | |||||
| 2C | W10732139 | Assembly, Orifice Holder (5k) (right Rear) |
|
$ 98.40 | |||||
| 2D | W10732141 | Assembly, Orifice Holder (8k) (center) |
|
$ 106.16 | |||||
| 8A | W10748103 | Valve, Gas (left Rear And Right Front) |
|
$ 246.81 | |||||
| 8B | W10748105 | Valve, Gas (center) |
|
- | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11216991 | Orifice, Lp Broil (Replaces: W10465078) |
|
Immediately | $ 79.77 | ||||
| NI | W11087486 | Lp Conversion Kit (bake And Broil) (Replaces: W10566535) |
|
Immediately | $ 101.10 | ||||
| NI | WPW10400494 | Orifice, Lp Bake (Replaces: W10400494) |
|
Immediately | $ 97.25 | ||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 6.26 | |||||
| NI | W11647020 | Lp 5 Orifice Conversion Kit (Replaces: W11600783) |
|
- |
