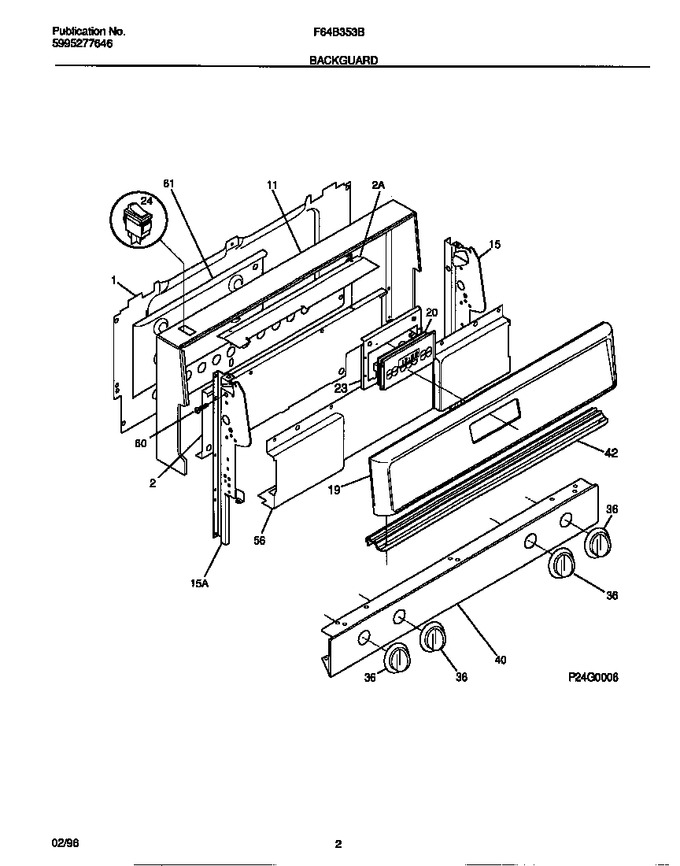

SELECT A DIAGRAM

01 - Cover


02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316028701		Shield-backguard, Rear Wall		Appelez-nous	-
2	316053801		Shield-backguard, Inner Top		Appelez-nous	-
2	316051601		Shield-backguard, Inner		Appelez-nous	-
11	316083704		Trim-wrapper, Black		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
15	316023110		Support-backguard, Rh		Appelez-nous	-
19	316024469		Panel-control		Appelez-nous	-
20	316027403		Clock/timer, Eoc		Appelez-nous	-
23	316033203		Bracket-clock Mtg		Appelez-nous	-
24	5304527841		Switch-light/lamp, Rocker Type, Black   (Replaces: 316005602)			Immediately	$ 11.38
36	316049300		Knob-top Valve, (4)		Appelez-nous	-
40	316009268		Panel-manifold		Appelez-nous	-
42	316055200		Trim-vent		Appelez-nous	-
56	316074902		Deflector-flue, Black		Appelez-nous	-
60	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
61	316055001		Shield, Bkgd Flue		Appelez-nous	-
*60160	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*60161	316001419		Harness-wiring, Backguard		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
