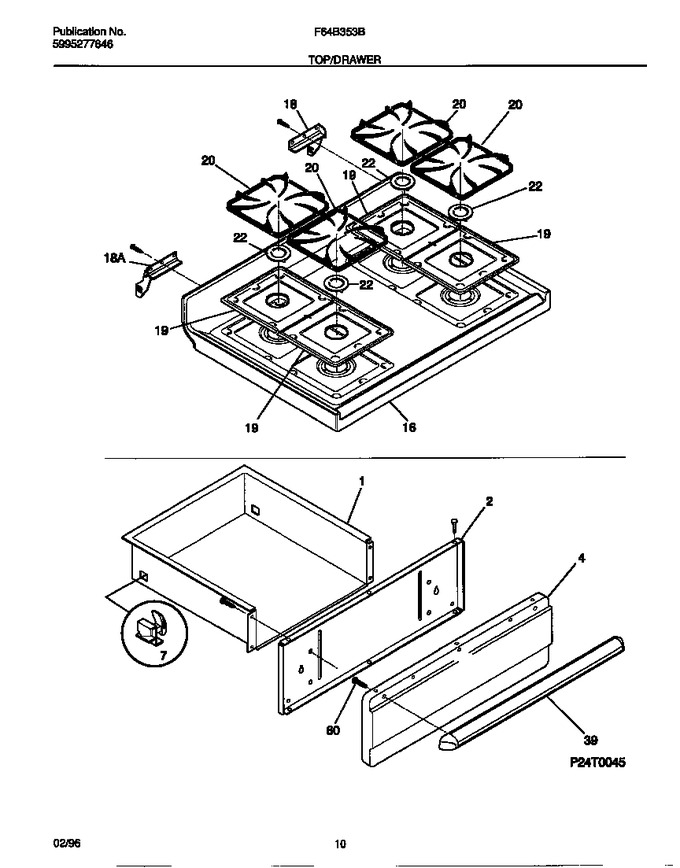

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316011501		Drawer-utility		Appelez-nous	-
2	3131975		Shield-panel		Appelez-nous	-
4	08067785		Screw, Hex Washer Head, 8-18(ab) X 1/2 (not Illustrated)		Appelez-nous	-
4	316056206		Panel,drawer ,almond		Appelez-nous	-
7	3051163		Glide,drawer ,rear			Immediately	$ 19.41
16	5303301547		Main Top, Almond		Appelez-nous	-
18	5303288567		Screw, 8-18 X 3/8, (4) (not Illustrated)		Appelez-nous	-
18	5303273063		Hinge-main Top (lh)				$ 48.41
18	5303273062		Hinge-main Top (rh)		Appelez-nous	-
19	316011401		Pan-burner				$ 20.58
20	316025400		Grate, (4)		Appelez-nous	-
22	316011001		Cap-burner, Black, (4)		Appelez-nous	-
39	316026100		Handle-drawer, Black		Appelez-nous	-
60	5303280308		Screw-handle Mtg, Wafer Head, 10-24(t) X 2				$ 16.96
*60163	3203618		Rivet-pop, Waring-plate		Appelez-nous	-
*60164	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*60165	3131903		Bumper				$ 55.36
16A	5303271891		Gusset-top Mtg, Rh (not Illustrated)		Appelez-nous	-
16B	5303271892		Gusset-top Mtg, Lh (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
