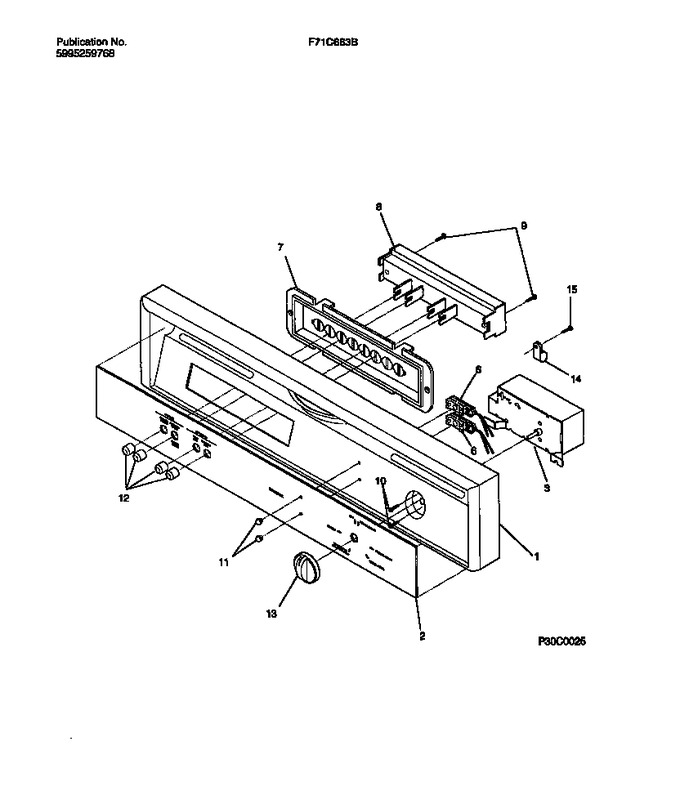

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154089603		Control Panel-black		Appelez-nous	-
2	154193603		Insert-control Panel-black		Appelez-nous	-
3	154169101		Timer				$ 412.44
6	5300809317		Light Assy		Appelez-nous	-
7	154131503		Adapter-switch		Appelez-nous	-
8	154102201		Switch		Appelez-nous	-
9	5303271401		Screw-switch (2)		Appelez-nous	-
10	154095701		Screw-timer/grounding				$ 10.34
11	154079801		Lens		Appelez-nous	-
12	154089803		Pushbuttons-black		Appelez-nous	-
13	154090003		Timer Knob-black		Appelez-nous	-
14	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
15	5300809175		Screw 8b X 7/16``		Appelez-nous	-
*64600	154167701		Wiring Harness		Appelez-nous	-
3A	154131203		Shield-timer (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
