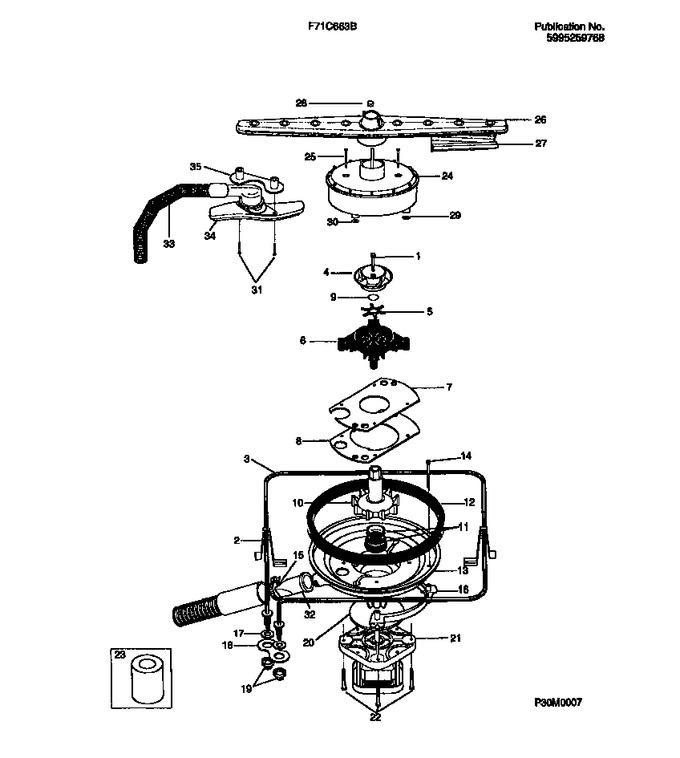

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw 10-32 Hexagonal				$ 12.06
2	5300809585		Heater Bracket (2)		Appelez-nous	-
3	5300809584		Heater				$ 222.23
4	5300809918		Upper Impeller				$ 83.45
5	5300809920		Macerator				$ 49.19
6	5300809921		Spacer Plate				$ 12.39
7	5300809006		Pump Plate				$ 45.94
8	5300809007		Pump Gasket				$ 18.06
9	5300806521		O-ring				$ 32.42
10	5300809909		Lower Impeller				$ 71.56
11	5300803903		Seal Kit				$ 109.86
13	5300809591		Pump Housing		Appelez-nous	-
14	5300807268		Screw-10 X 1``(3)				$ 5.93
15	5300808186		Hose Clamp		Appelez-nous	-
16	5300809590		Pump Clamp				$ 47.93
17	5300809587		Washer - Heater (2)		Appelez-nous	-
18	154064901		Insulating Washer				$ 8.14
19	154106202		Heater Nut (2)   (Replaces: 154106201)			Immediately	$ 18.32
20	5300809366		Watershield Assy				$ 2.26
21	5300809984		Motor		Appelez-nous	-
22	5300809022		Screw-motor Mtg (4)		Appelez-nous	-
23	5300803923		Tool				$ 57.38
24	154158301		Filter Housing Assy		Appelez-nous	-
25	5300807359		Screw 10 X 1 3/4``		Appelez-nous	-
26	154156602		Lower Spray Arm Assy				$ 58.91
27	5300809938		Spray Arm Shield (2)				$ 37.05
28	154190401		Spray Arm Nut				$ 21.00
29	5300809015		O-ring				$ 6.09
30	5300809016		O-ring				$ 5.83
31	5300809012		Screw				$ 8.03
32	5300809937		Check Valve				$ 74.71
33	154119301		Delivery Tube		Appelez-nous	-
34	154119401		Upper Spray Arm				$ 59.85
35	154126401		Plate-upper Spray Arm Mounting		Appelez-nous	-
2A	5300810094		Screw-heater Bracket(2) (non-illustrated)		Appelez-nous	-
