SELECT A DIAGRAM

01 - Cover Sheet

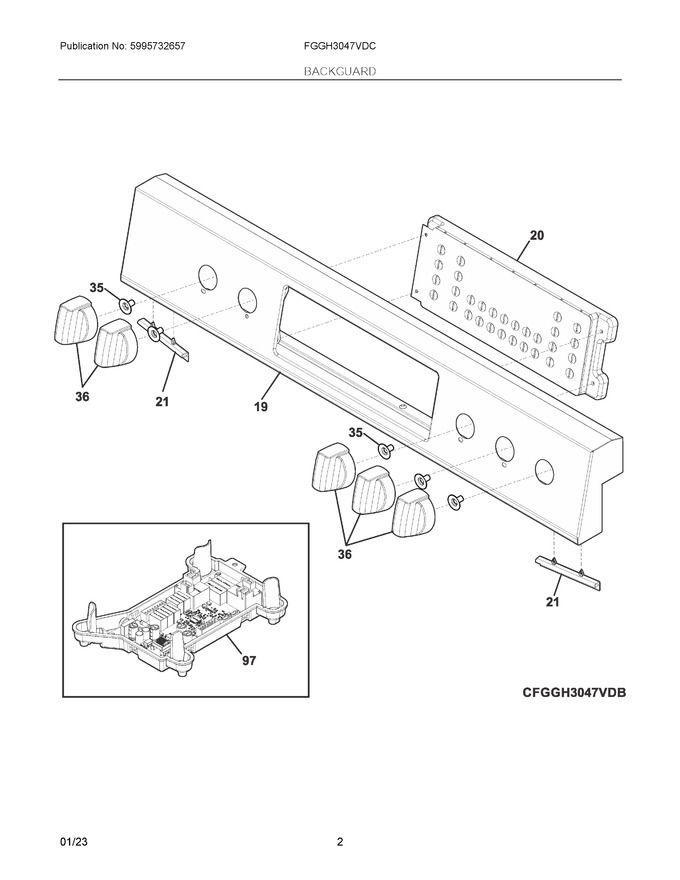

02 - Backguard


03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	5304518006		Control Panel, Front, Blk Stnlss				$ 266.34
20	5304524332		Control, Black, Es501g			Immediately	$ 351.28
21	5304521021		Seal, Control Panel				$ 27.34
35	5304508440		Bushing, Insulating			Immediately	$ 11.38
36	5304521002		Knob, Top Valve, Stainless				$ 84.93
97	5304516862		Board, Pc, Oven Relay			Immediately	$ 330.67
NI	5304520393		Spacer, Foam Block, 2" X 1", W/adhesive		Appelez-nous	-
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NIA	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
