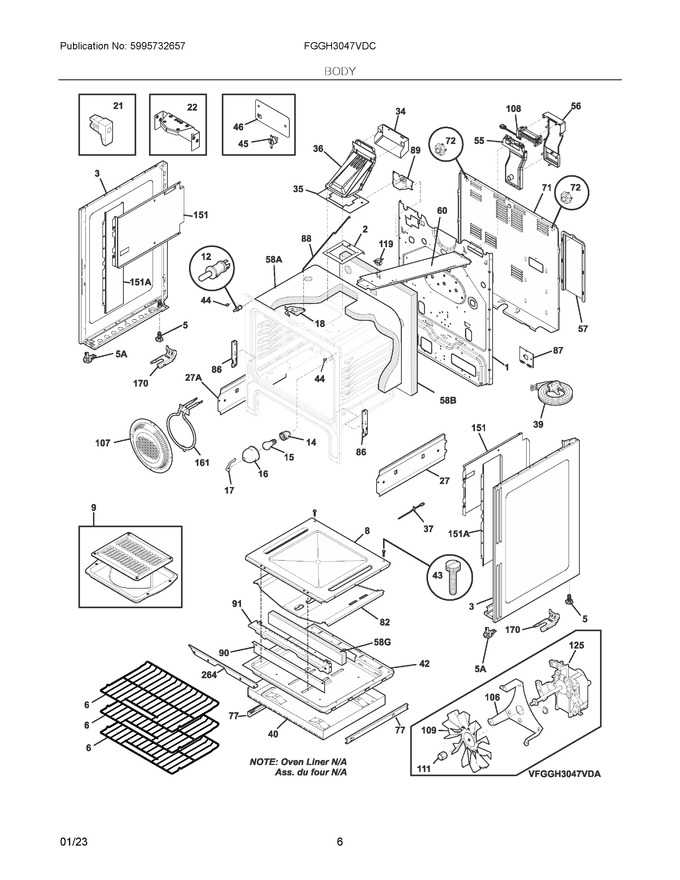

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304527900		Back, Main		Appelez-nous	-
2	316437100		Brace, Oven Top				$ 31.90
3	316400144		Panel, Bodyside, Black, Rh			Immediately	$ 134.69
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316496201		Rack, Oven   (Replaces: 316498003)			Immediately	$ 103.48
8	316603201		Panel, Oven Bottom				$ 146.27
9	5304494997		Broil Pan Kit, Pan & Insert, Slate Blue, Optional, Accessory				$ 72.01
12	316445501		Switch, Oven Light, Door Frame				$ 90.01
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light			Immediately	$ 20.48
16	5304524341		Lens, Oven Light, Glass			Immediately	$ 14.18
17	316087500		Retainer, Lens				$ 56.70
18	316405800		Latch Assembly, Oven Door			Immediately	$ 56.74
21	316408000		Clip, Bodyside				$ 18.20
22	5304514125		Bracket, Support, Body Side, (2)				$ 12.05
27	316604100		Shield, Warmer Side, Rh		Appelez-nous	-
34	5304514137		Shield, Fluebox		Appelez-nous	-
35	316542102		Gasket-flue				$ 12.13
36	5304514132		Fluebox, Assembly				$ 52.33
37	316490000		Probe, Oven Temp			Immediately	$ 58.30
39	5304534000		Cord, Power, Black, 13a			Immediately	$ 33.37
40	316602600		Shield, Warmer Drawer		Appelez-nous	-
42	316601600		Shield, Chassis, Lower		Appelez-nous	-
43	316282700		Screw, 8-18 X 1.438, Oven Bottom   (Replaces: 3131732)				$ 9.93
44	316517600		Bumper, Front, Main				$ 12.05
45	5304514198		Thermostat, Thermal Cut-off, 110, Auto Reset			Immediately	$ 37.16
46	5304514193		Plate, Tco Mounting		Appelez-nous	-
55	5304514171		Duct, Inlet Air, Front			Immediately	$ 38.68
56	5304514172		Duct, Inlet Air, Rear			Immediately	$ 43.23
57	5304514173		Duct, Exterior				$ 45.50
60	5304531693		Duct, Cooling, 60				$ 35.15
71	5304514175		Shield, Wire, Rear				$ 118.31
72	5304514177		Spacer, Wire Shield, (2)				$ 12.89
77	316456700		Glide, Warmer Drawer, Outer/rh & Lh, (2)			Immediately	$ 60.96
82	316601401		Shield, Bake				$ 105.42
86	316580700		Receptacle, Hinge, (2)   (Replaces: 316508600)			Immediately	$ 30.47
87	316602200		Plate, Power Cord, Mount		Appelez-nous	-
88	316232702		Rod, Auto Latch				$ 12.89
89	5304528973		Motor, Latch			Immediately	$ 52.34
90	316601900		Shield, Main, Front		Appelez-nous	-
91	316601800		Shield, Burner, Front		Appelez-nous	-
106	316404100		Bracket, Motor Mtg.				$ 63.70
107	316026701		Cover, Fan				$ 408.89
108	5304514166		Fan Assembly, Cooling			Immediately	$ 333.73
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	318578506		Thermostat, Safety, 105c			Immediately	$ 58.19
125	316256900		Motor-fan				$ 191.27
151	5304518926		Shield, Heat, Bodyside, (2)				$ 51.74
161	5304518014		Element, Convection, 900w				$ 70.52
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
264	316404700		Bracket, Air Dam		Appelez-nous	-
151A	316404601		Shield, Bodyside   (Replaces: 5304521158)				$ 21.27
27A	316604104		Shield, Warmer Side, Lh   (Replaces: 316604101)		Appelez-nous	-
3A	316400145		Panel, Bodyside, Black, Lh			Immediately	$ 133.93
58A	316403700		Insulation, Oven Wrapper				$ 304.06
58B	316403600		Insulation, Oven Back				$ 125.75
58G	08067973		Insulation, Main Front				$ 51.74
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 15.08
NI	5304518022		Harness, Wiring, Main				$ 181.25
NI	241500305		Screw, Self Pierce,8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NI	5303288566		Screw, Tr Hd Sqd Ab, 8-18 X 0.25, (8)				$ 2.12
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304532498		Harness, Wiring, Low Voltage				$ 77.66
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	5304514202		Nut, Lock, M4 X .70, Thermostat		Appelez-nous	-
NIA	316432800		Clip, Wire		Appelez-nous	-
NIA	316064600		Support, Oven Bottom				$ 18.95
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIC	316541700		Template, Anti-tip		Appelez-nous	-
