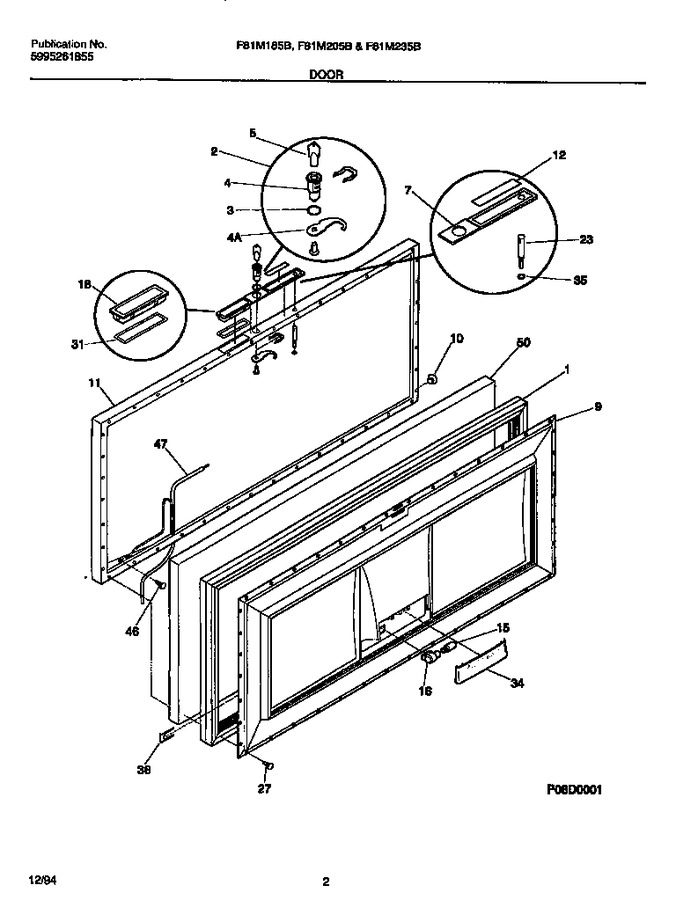

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080100		Gasket, Lid, White		Appelez-nous	-
2	5303925107		Lock Assy		Appelez-nous	-
3	5300114366		Washer-lock		Appelez-nous	-
4	5303283905		Cylinder, Lock		Appelez-nous	-
5	297147700		Key Lock   (Replaces: 5308037402)			Immediately	$ 7.57
7	216208100		Bezel, Nameplate		Appelez-nous	-
9	216059704		Panel, Inner Lid, White				$ 339.62
11	216130105		Panel, Outer Lid, White		Appelez-nous	-
12	216315300		Insert, Nameplate		Appelez-nous	-
15	5304517886		Light Bulb/lamp   (Replaces: 216222700)			Immediately	$ 73.06
16	216039700		Socket, Light/lamp		Appelez-nous	-
18	216140200		Handle, Recessed, White		Appelez-nous	-
23	3200895		Light, Signal, Round, Amber		Appelez-nous	-
27	5303212828		Screw, Panel				$ 16.63
31	08009392		Gasket, Handle, Recessed, White		Appelez-nous	-
34	216087900		Shield, Light				$ 13.13
35	5303297015		Washer, Signal Light		Appelez-nous	-
36	5306599968		Plate, Backup, Light Switch		Appelez-nous	-
46	08037851		Screw, Ph Type Ab, 8, 32 X 1/2, Wiring Harness				$ 3.57
47	216040700		Harness, Wiring, Lid		Appelez-nous	-
50	5300128901		Insulation, Panel/lid		Appelez-nous	-
4A	5300300791		Hook, Lock		Appelez-nous	-
