SELECT A DIAGRAM

02 - Door

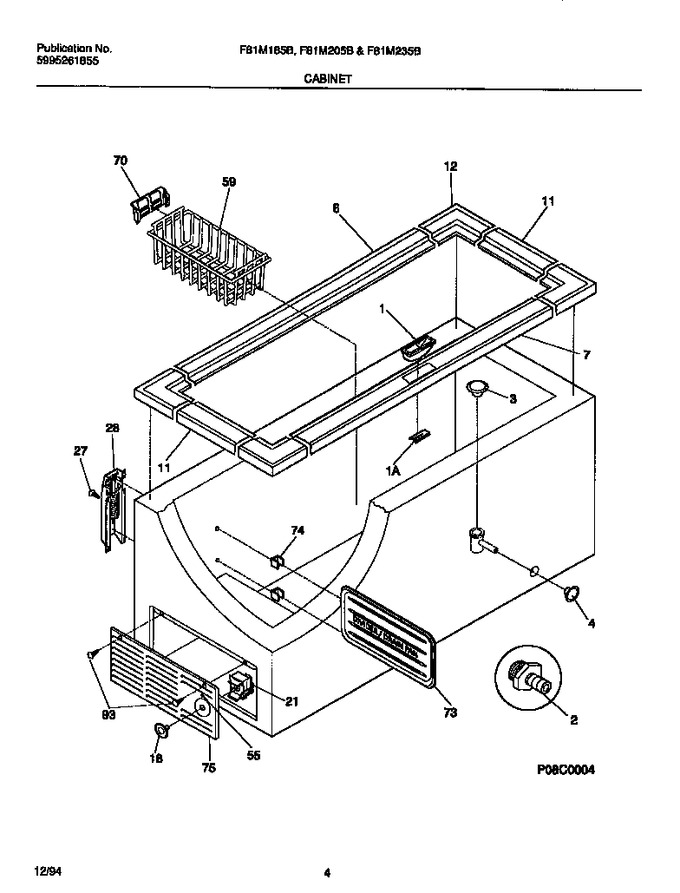

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216080800		Support, Lock		Appelez-nous	-
2	216269500		Adapter, Drain				$ 14.81
3	5306593887		Plug, Drain, Liner		Appelez-nous	-
4	216073900		Plug, Drain		Appelez-nous	-
6	216111200		Breaker, Hinge Side		Appelez-nous	-
7	216111800		Breaker, Lock Side		Appelez-nous	-
11	216110800		Breaker, White, End		Appelez-nous	-
12	216110700		Breaker,white ,corners				$ 28.45
18	216034505		Knob, Control, White		Appelez-nous	-
21	5304496560		Control Temperature   (Replaces: 5303212610)				$ 49.62
27	5309950602		Screw Hinge				$ 5.30
28	216035300		Hinge		Appelez-nous	-
55	5303208663		Lens, Indicator, Cold Control		Appelez-nous	-
59	216080600		Basket				$ 95.29
70	216208500		Handle, Basket, Red		Appelez-nous	-
73	216128200		Divider-drain Pan		Appelez-nous	-
74	5306594584		Support, Shelf				$ 19.80
75	216022700		Panel, Access, White		Appelez-nous	-
93	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
1A	5303208488		Latch, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
