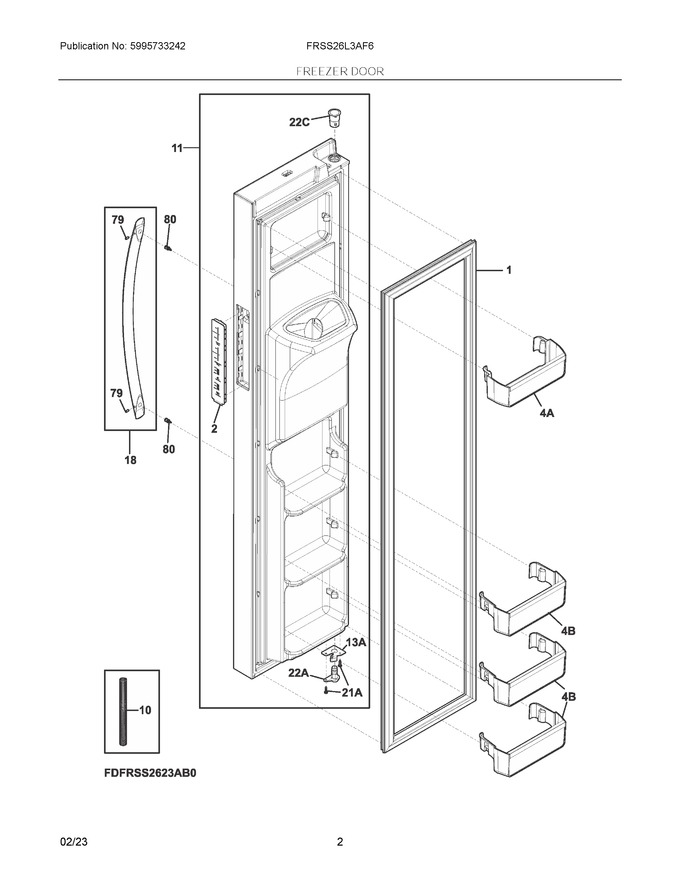

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241786014		Gasket-frzr Door, Grey, Magnetic   (Replaces: 241786010)				$ 95.17
2	5304526068		User Interface, Assembly, Gray, Side Control, W/pcb-overlay			Immediately	$ 257.09
10	807688301		Spring, Water Hose, Frz Door				$ 18.57
11	5304527272		Door Assembly, Freezer, Stainless, Complete				$ 696.32
18	5304511770		Handle, Door, Stainless, W/set Screws			Immediately	$ 229.03
79	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 20.56
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	5304527380		Stop, Door, Black, Freezer				$ 15.17
21A	240442708		Screw, #10-32 X 3/4, Zinc   (Replaces: 240442706)				$ 8.34
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
22A	5303918892		Bushing, Door Closer, Black   (Replaces: 5304525921)				$ 30.08
22C	241760401		Bearing, Hinge, Top, Lh Door			Immediately	$ 19.13
4A	5304536364		Bin Assembly, Pseudo, Upper   (Replaces: 5304525907)				$ 25.80
4B	5304536365		Bin Assembly, Pseudo, Lower   (Replaces: 5304525908)			Immediately	$ 25.65
NI	218976438		Tube, Water, 62", Natural, Door, To Dispenser			Immediately	$ 20.56
NI	240451503		Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe				$ 3.79
NI	218515401		Clip, Grille/tube, & Hinge				$ 17.72
NI	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 70.56
