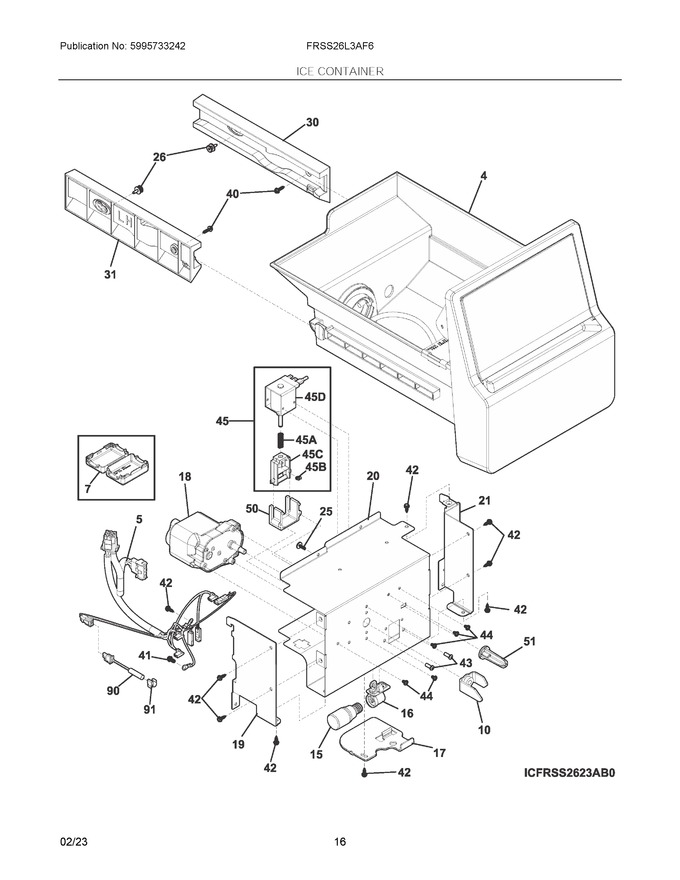

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	5304525931		Ice Container Assembly, W/moving Parts		Appelez-nous	-
7	5304526063		Cover, Connector, Ice Maker				$ 169.65
10	241726501		Bar-drive				$ 58.82
15	5304522314		Bulb, Light, E17/12 Led			Immediately	$ 40.19
16	5304522315		Socket, Led Light			Immediately	$ 10.62
17	5304521688		Shield, Light, Freezer		Appelez-nous	-
18	5304526014		Motor, Auger			Immediately	$ 172.09
19	5304525944		Cover Guard, Motor, Lh		Appelez-nous	-
20	241734903		Cover, Motor		Appelez-nous	-
21	5304525975		Cover Guard, Motor, Rh				$ 23.13
23	241684001		Plate-front				$ 149.54
25	242015001		Screw, 8-18 X 1/2			Immediately	$ 16.30
30	5304525945		Rail, Ice Container, Rh		Appelez-nous	-
31	5304525946		Rail, Ice Container, Lh				$ 100.11
40	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
41	241885001		Housing-crusher   (Replaces: 241685601)				$ 75.83
42	5308000039		Screw, Hex Washer Head, 8-32ca X 0.500, Serrated Head		Appelez-nous	-
43	215503203		Screw, Cr Pan Hd, 10-16 X 0.500			Immediately	$ 7.09
44	218359202		Screw, 8-32 X 1/4   (Replaces: 241842101)				$ 10.63
45	241675705		Solenoid, Assembly			Immediately	$ 138.22
50	241675601		Guide-solenoid				$ 80.09
51	5304511761		Stop, Rotation				$ 4.03
90	240597220		Sensor, Temperature, 10k, Ntc   (Replaces: 240597203)			Immediately	$ 5.16
91	241519401		Clip, Sensor				$ 8.51
45A	241675902		Spring-solenoid				$ 6.38
45B	241676001		E-ring-solenoid				$ 70.16
45C	241676101		Actuator-solenoid				$ 64.49
45D	241675804		Solenoid, 115v		Appelez-nous	-
NI	218515401		Clip, Grille/tube, & Hinge				$ 17.72
NI	5304525991		Harness, Wiring, Ice Maker, & Auger Assy				$ 63.45
NIA	241684503		Blade Drive				$ 17.44
