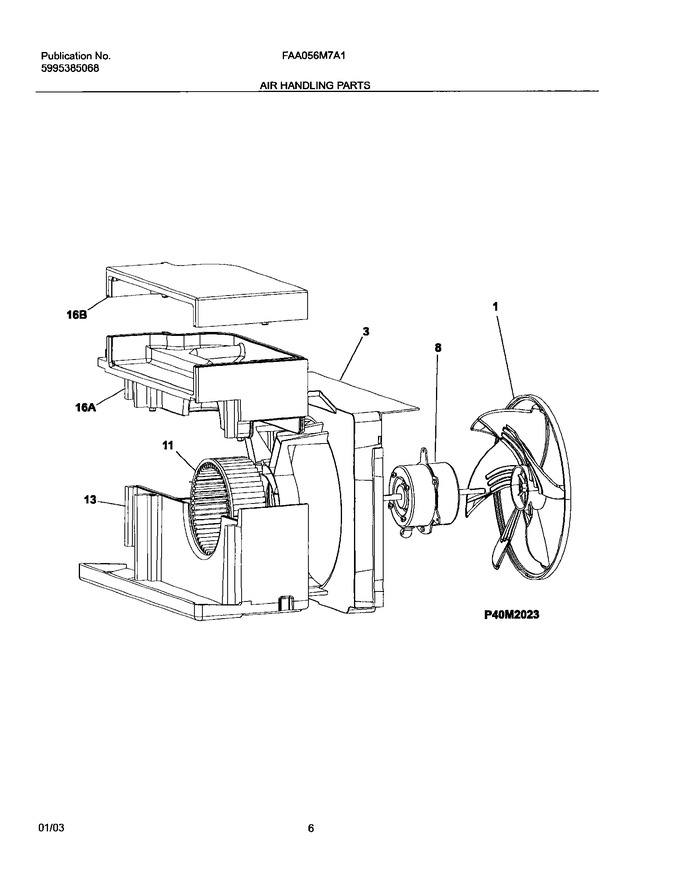

07 - Air Handling Parts


09 - Compressor Parts


11 - Window Mounting Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
F1	309646202		Fan Blade,with Clamp		Appelez-nous	-
F11	309649802		Blower Wheel,8mm Snap-on Hub		Appelez-nous	-
F13	309650401		Scroll/evap Tray,blower Housing ,bottom		Appelez-nous	-
F16A	309650501		Scroll,blower Housing ,top		Appelez-nous	-
F16B	309650601		Cover,scroll		Appelez-nous	-
F3	309650701		Shroud,fan Housing		Appelez-nous	-
F8	309649901		Motor,fan		Appelez-nous	-
NI	327161302		Clamp,blower Wheel Mt ,compression		Appelez-nous	-
NI	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
NI	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
