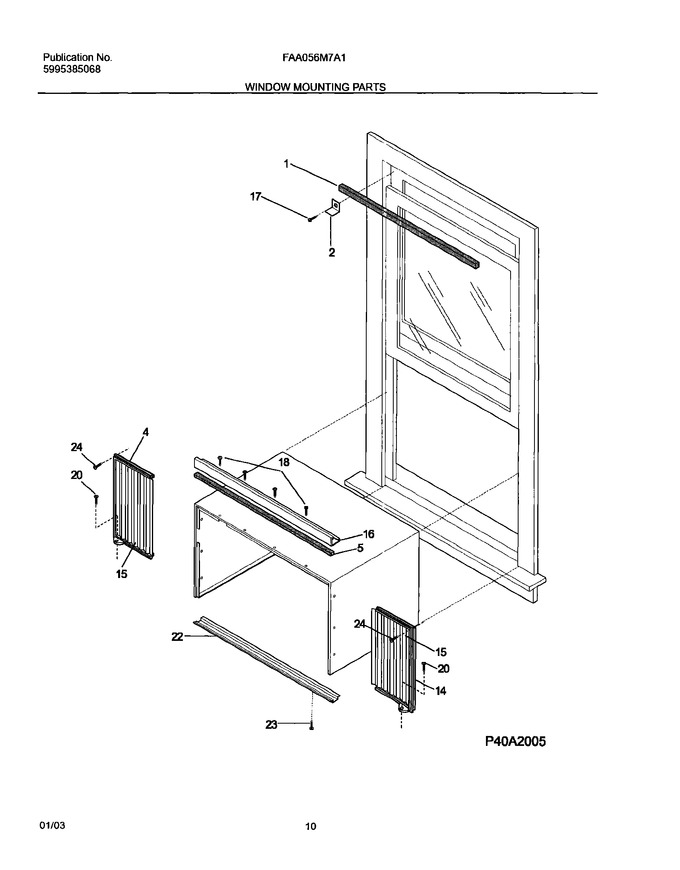

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304407729		Seal,window Stuffer		Appelez-nous	-
2	5303211056		Bracket-sash Lock		Appelez-nous	-
4	309644902		Frame Extension Kit,accordian ,lh & Rh ,incl. 4,14,15				$ 133.56
4	5304423372		Extension,sliding Frame ,lh Cab Front ,w/closure Panel				$ 85.42
5	08016226		Seal,top Rail/cab		Appelez-nous	-
14	5304423373		Extension,sliding Frame ,rh Cab Front ,w/closure Panel				$ 88.88
15	309645501		Panel,accordian ,rh/lh ,window Closure				$ 69.88
16	5304430650		Rail,retainer ,top		Appelez-nous	-
17	3002803		Screw,wood, Type 17 ,10-12 X 0.750		Appelez-nous	-
18	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
20	5304411997		Screw,8-18 X 0.750				$ 2.37
22	5304403252		Rail,retainer ,bottom		Appelez-nous	-
23	3001806		Screw,23(t) ,10-32 X 0.310		Appelez-nous	-
24	5308002974		Screw,wood, Type 17 ,8-15 X 0.500		Appelez-nous	-
