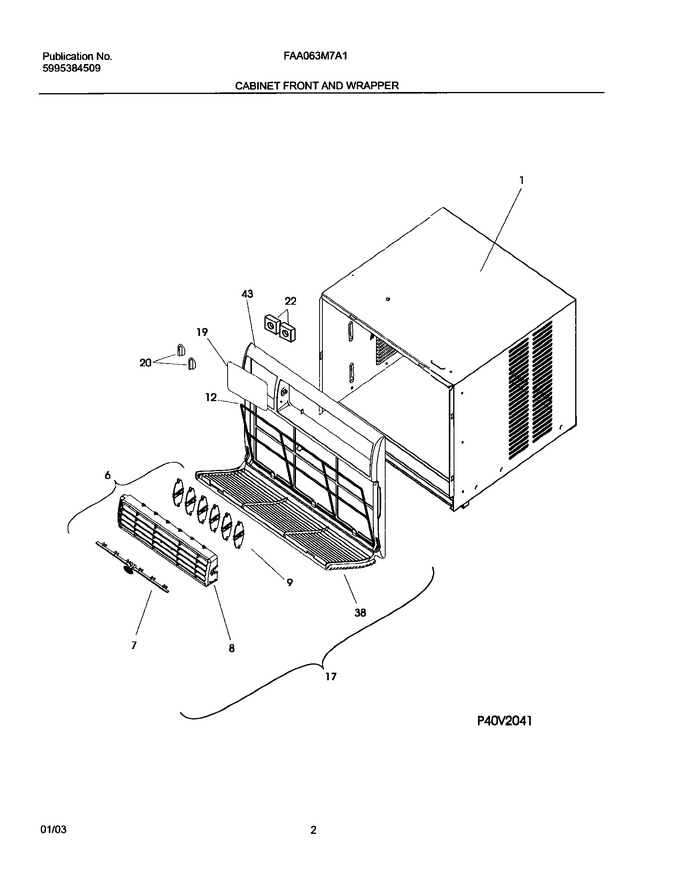

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304430636		Cabinet,wrapper		Appelez-nous	-
6	309640207		Louver Assy,includes 7,8,9		Appelez-nous	-
7	309638002		Link,vertical Louver ,with Handle		Appelez-nous	-
8	309639303		Louver,horizontal		Appelez-nous	-
9	309342001		Louver,vertical ,(6)		Appelez-nous	-
12	309343501		Filter-air,7.12 X 17.31 ,no Frame				$ 49.82
17	309640107		Front Assembly,4 Way Panel ,w/8,9,12,38,43		Appelez-nous	-
19	309342907		Dial Plate		Appelez-nous	-
20	309364102		Knob,rotary Control				$ 28.51
22	5303001775		Spacer - Dial Plate		Appelez-nous	-
38	309646301		Panel,cabinet Front				$ 50.77
43	309646401		Frame,cabinet Front				$ 77.70
NI	3015312		Screw,8-18ab X 0.500		Appelez-nous	-
NI	5303303691		Screw,truss Head `8-18ab X 0.375 ,w/nibs		Appelez-nous	-
NI	309369949		Energy Guide,faa063m7a1		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
