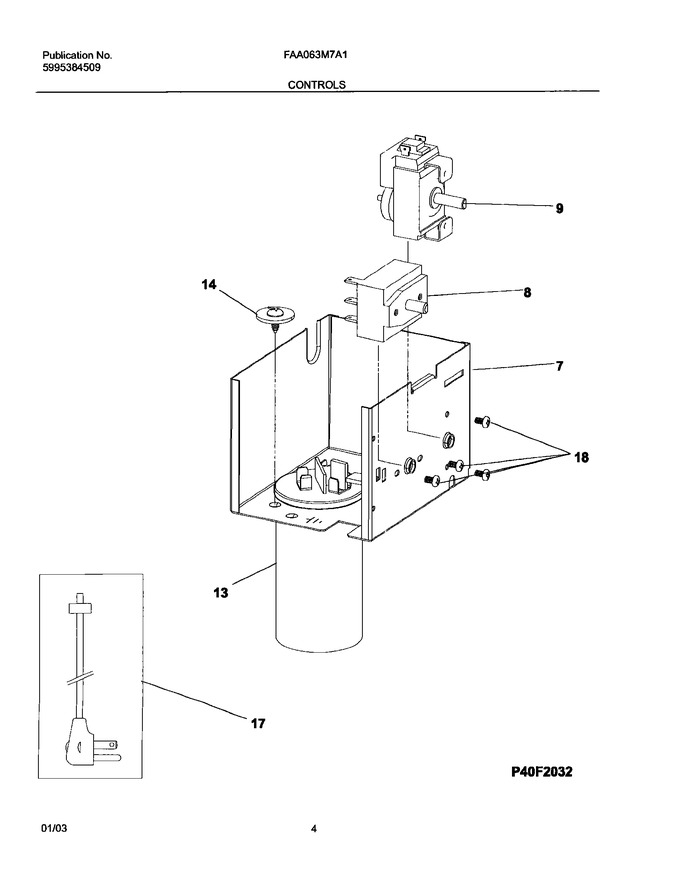

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	309650301		Control Box		Appelez-nous	-
14	3002801		Screw,8-18b X 0.500		Appelez-nous	-
18	5303007754		Screw,6-32 X 0.188		Appelez-nous	-
F13	5304426449		Capacitor,250 V ,35+5 Mfd				$ 116.08
F17	309343122		Cord-electric Power,18 Awg ,115 V		Appelez-nous	-
F8	5303323284		Switch,selector ,7 Posn,3 Speed		Appelez-nous	-
F9	5304402838		Control-temperature		Appelez-nous	-
NI	5303285199		Screw,ph Truss Hd ,8-18 X 0.38 ,grounding		Appelez-nous	-
