SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts

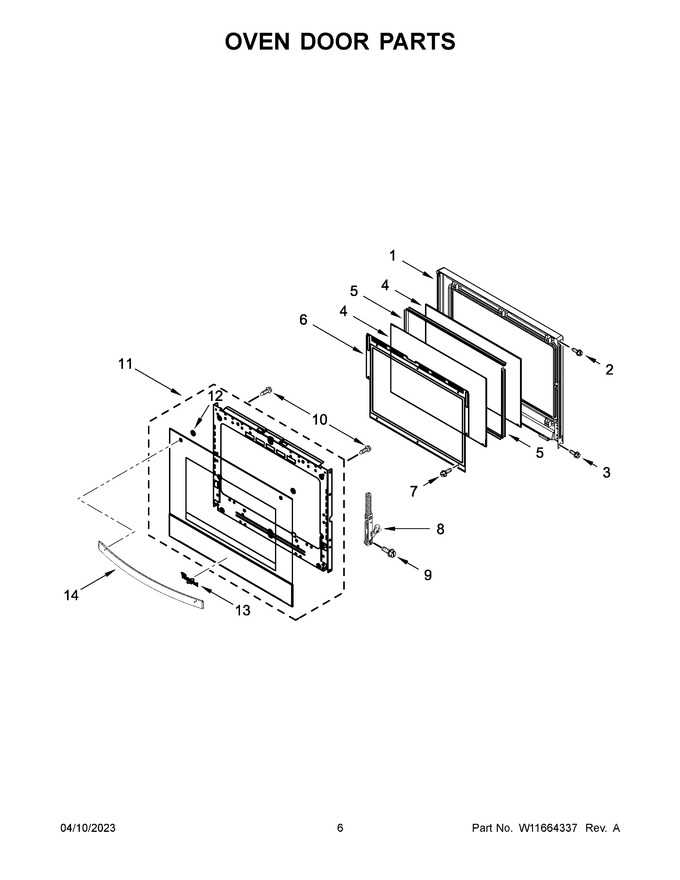

04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11598186		Liner Assembly   (Replaces: W11302593)				$ 318.00
2	7101P37560		Screw		Appelez-nous	-
3	W11617225		Screw   (Replaces: W11290045)				$ 12.66
4	WPW10284902		Glass, Inner   (Replaces: W10618123)				$ 196.98
5	W11736672		Spacer, Air Divider   (Replaces: W11302731)			Immediately	$ 46.34
6	W11598188		Retainer, Air Divider Glass   (Replaces: W11204277)				$ 70.15
7	7101P42660		Screw		Appelez-nous	-
8	W11470044		Hinge, Door (left)				$ 117.56
9	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 6.98
10	W11602624		Screw (black)   (Replaces: W11317731)			Immediately	$ 12.65
11	W11654071		Door Assembly (black)   (Replaces: W11499374)				$ 432.93
12	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 12.69
13	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
14	W11648761		Handle, Door (black)   (Replaces: W11548016)				$ 82.02
11A	W11654078		Door Assembly (white)   (Replaces: W11499376)				$ 432.97
11B	W11654067		Door Assembly (stainless)   (Replaces: W11499375)				$ 430.50
14A	W11675412		Handle, Door (white)   (Replaces: W11660150)				$ 86.78
14B	W11648757		Handle, Door (stainless)   (Replaces: W11532601)		Appelez-nous	-
8A	W11470045		Hinge, Door (right)				$ 117.56

    View Diagram in Separate Window       Print Part List
