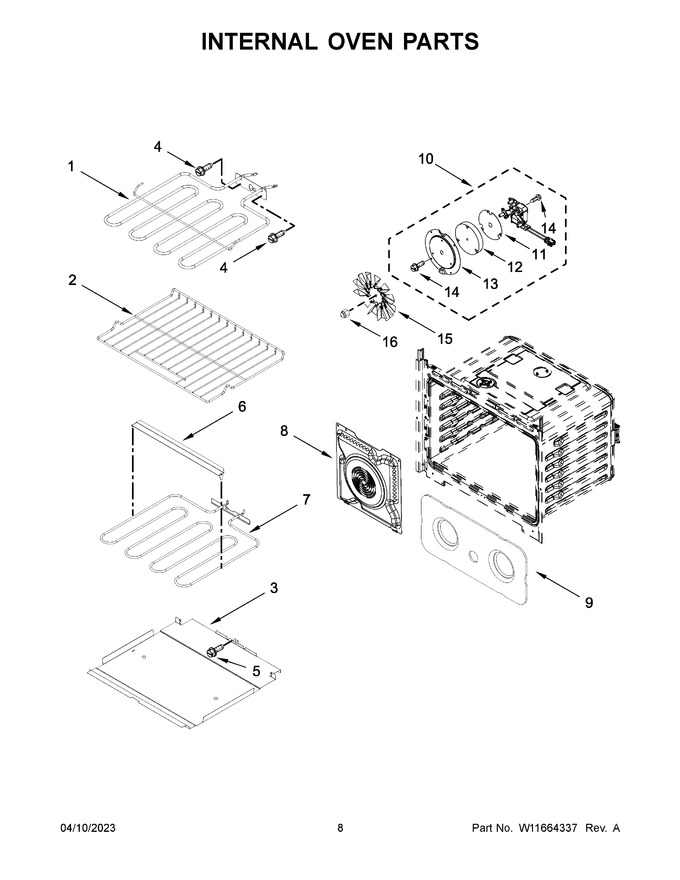

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11617232		Element, Broil   (Replaces: W11238160)			Immediately	$ 112.61
2	WPW10317431		Rack, Oven   (Replaces: W10317431)				$ 113.99
3	W10318198		Tray, Hidden Bake				$ 167.85
4	7101P43460		Screw		Appelez-nous	-
5	7101P42660		Screw		Appelez-nous	-
6	W10282957		Crossbar, Hidden Bake Tray				$ 40.69
7	W11545804		Element, Bake   (Replaces: W11292248)			Immediately	$ 92.28
8	W10359278		Baffle, Convection				$ 213.62
9	W11489860		Plate, Ring Element				$ 16.38
10	W11617227		Convect Motor Assembly   (Replaces: W11398058)			Immediately	$ 143.64
11	W11602629		Plate, Convect Motor   (Replaces: W11251715)		Appelez-nous	-
12	W11706806		Insulation, Convect Motor   (Replaces: W11251716)		Appelez-nous	-
13	W11617229		Cover, Convect Plate   (Replaces: W11398057)		Appelez-nous	-
14	W10850807		Screw   (Replaces: W10720084)				$ 6.67
15	W11548753		Blade, Fan   (Replaces: W11425715)			Immediately	$ 135.11
16	W11548755		Nut, Acorn (lh)   (Replaces: W11433702)				$ 13.02

    View Diagram in Separate Window       Print Part List
