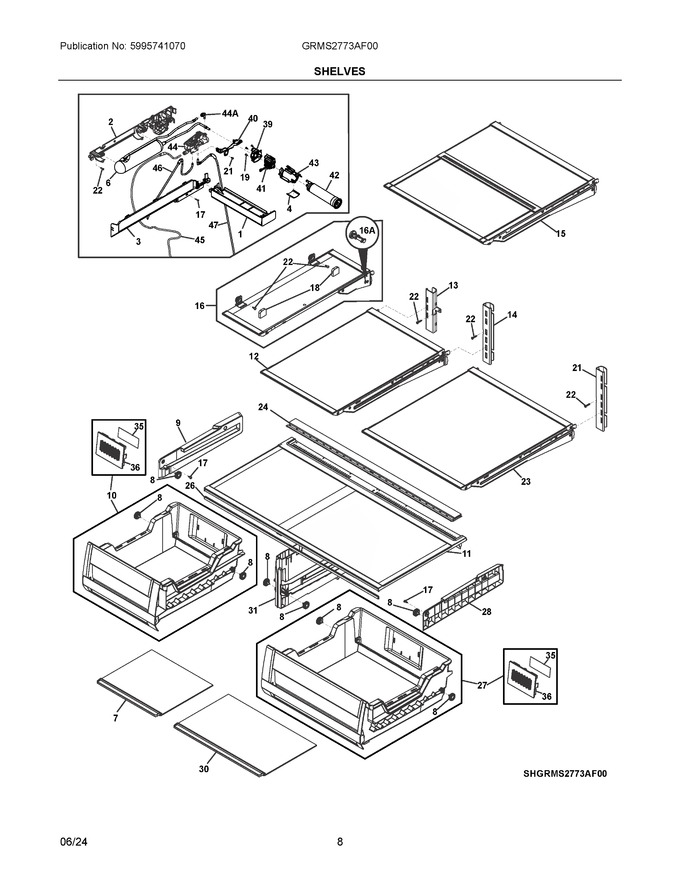

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304529551		Cover, Filter Facia				$ 60.44
2	5304529543		Support, Water Valve, & Tank		Appelez-nous	-
3	5304529550		Cover, Water Tank		Appelez-nous	-
4	5304529552		Seal, Foam, 37 X 70mm		Appelez-nous	-
6	5304523037		Tank, Water, Disp Reservoir				$ 179.78
7	5304534909		Cover, Mullion Storage, Glass, Lh		Appelez-nous	-
8	5304519124		Roller, Crisper Glide				$ 16.84
9	5304534868		Rail, Crisper, Lh Side		Appelez-nous	-
10	5304534904		Drawer Assembly, Crisper, Lh, W/rollers		Appelez-nous	-
11	5304534906		Cover Assembly, Crisper, W/glass		Appelez-nous	-
12	5304536618		Shelf Assembly, Cantilever, Glass, Lh   (Replaces: 5304534901)		Appelez-nous	-
13	5304519129		Bracket, Cantilever Shlf, Lh		Appelez-nous	-
14	5304519130		Bracket, Cantilever Shlf, Center				$ 52.45
15	5304534902		Shelf Assembly, Cantilever, Glass, Upper		Appelez-nous	-
16	5304534899		Shelf Assembly, Flip Up, Glass, Lh		Appelez-nous	-
17	5304534870		Screw, Phil Pan Hilo, .63 In		Appelez-nous	-
18	5304519133		Cover, Screw, Small				$ 8.19
19	241953902		Screw, Quad Hilo, #8-18 X 0.380			Immediately	$ 17.11
21	5304519136		Bracket, Cantilever Shlf, Rh				$ 53.87
22	811949503		Screw, Truss, 4.2 X 13				$ 3.03
23	5304536617		Shelf Assembly, Cantilever, Glass, Rh   (Replaces: 5304534900)		Appelez-nous	-
24	5304523048		Housing Assembly, Auto Humidity, W/membrane				$ 65.98
26	5304534907		Gasket, Cover, Crisper		Appelez-nous	-
27	5304534903		Drawer Assembly, Crisper, Rh, W/rollers				$ 152.77
28	5304534869		Rail, Crisper, Rh Side		Appelez-nous	-
30	5304534908		Cover, Mullion Storage, Rh		Appelez-nous	-
31	5304534905		Divider, Crisper Cover		Appelez-nous	-
35	FRPAPK2RF		Frigidaire Pa Pk-2 Refill			Immediately	$ 32.14
36	5304529586		Cover, Freshness Boost				$ 17.35
39	5304536610		Cover, Manifold, Rear   (Replaces: 5304529548)				$ 2.93
40	5304529545		Guide, Water Tube			Immediately	$ 18.25
41	140156010062		Manifold, Water Filter   (Replaces: 5304529546)			Immediately	$ 54.58
42	FPPWFU01		Frig Purepour Water Filter			Immediately	$ 80.38
43	5304529547		Cover, Manifold, Front				$ 65.25
44	5304529544		Water Valve, Assembly, Double			Immediately	$ 148.69
45	5304534886		Tubing, Valve, To Door Hinge				$ 31.07
46	5304527422		Tubing, Valve, To Ff Ice Maker			Immediately	$ 16.23
47	5304529549		Tube, Water			Immediately	$ 23.06
16A	5304523682		Pin, Interlock, Flip Up Shelf		Appelez-nous	-
44A	5304523053		Connector, Tubing, Quick Connect			Immediately	$ 25.94
NI	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
NIA	5304519098		Screw, Trilob, M4 X 12				$ 3.03
NIA	5304529553		Seal, Foam, Inlet Tube		Appelez-nous	-
