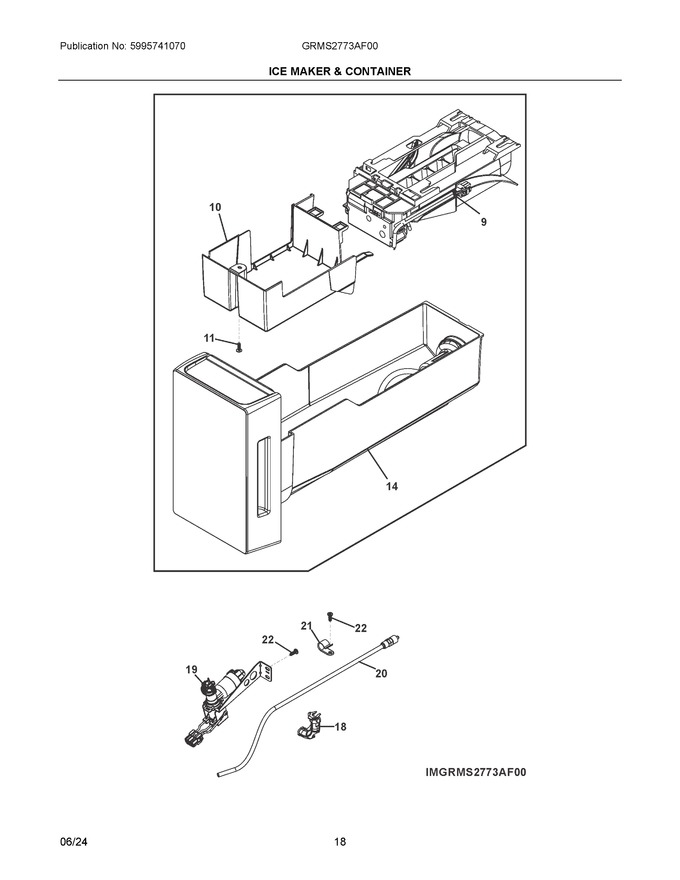

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	243297608		Ice Maker, Assembly, Fresh Food, 115 V, Twist Tray			Immediately	$ 164.41
10	5304534892		Cover, Harness, Ff Ice Maker		Appelez-nous	-
11	5304453707		Screw, Quad Hilo Sts, #8-18   (Replaces: 241953909)			Immediately	$ 15.92
14	5304534893		Bucket Assembly, Ice Container, W/moving Parts		Appelez-nous	-
18	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63
19	5304536607		Valve, Water, Single   (Replaces: 5304529533)			Immediately	$ 102.65
20	5304537896		Tube Assembly, Inlet Water, W/connector   (Replaces: 5304529164)			Immediately	$ 47.98
21	240396801		Clamp, Tube/wiring, Nylon, Black/natural				$ 19.13
22	811949503		Screw, Truss, 4.2 X 13				$ 3.03
NI	811948501		Cable Tie, 2.5 X 120		Appelez-nous	-
NI	5304534887		Clamp, Water Tube				$ 8.87

    View Diagram in Separate Window       Print Part List
