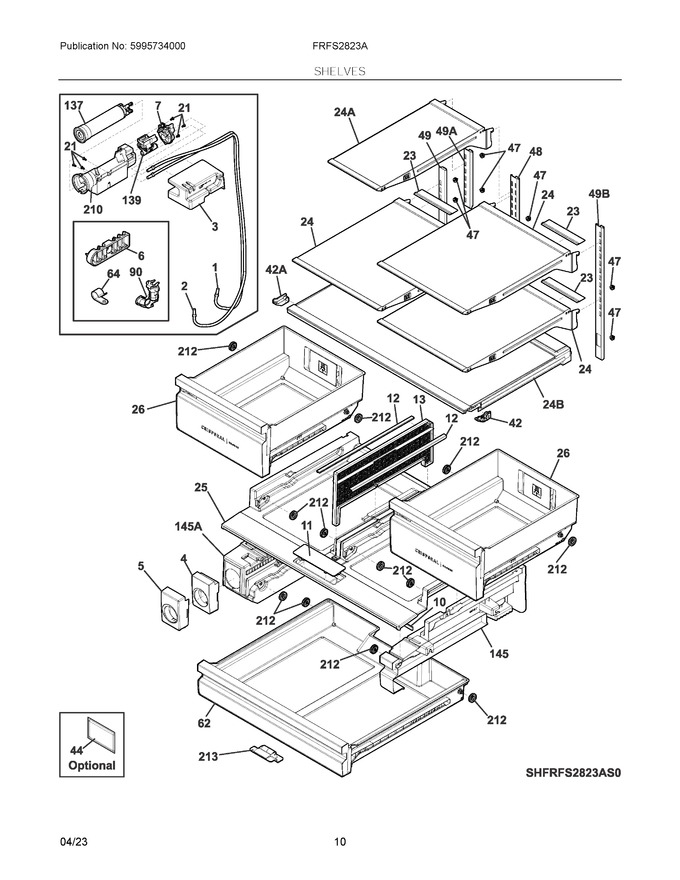

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242220127 | Tube, Water, 48.82", Brown/tan, Valve, To Filter Inlet |
|
$ 18.95 | |||||
| 2 | 242220128 | Tube, Water, 51.18", Natural, Filter Outlet, To Valve |
|
$ 18.95 | |||||
| 3 | 5304531114 | Insulation, Water Line |
|
$ 5.91 | |||||
| 4 | 5304531171 | Facia, Water Filter |
|
$ 10.58 | |||||
| 5 | 140267200016 | Cover, Filter Facia (Replaces: 5304531172) |
|
Immediately | $ 11.48 | ||||
| 6 | 5304531203 | Clamp, Water Tube |
|
$ 4.71 | |||||
| 7 | 5304531689 | Support, Water Filter |
|
Immediately | $ 11.13 | ||||
| 10 | 241872205 | Beam, Support, Deli |
|
- | |||||
| 11 | 5304531206 | Cover, Deli Cover |
|
- | |||||
| 12 | 5304531315 | Gasket, Center Support, Crisper |
|
- | |||||
| 13 | 5304531085 | Support, Crispers, Center |
|
- | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 23 | 5304530899 | Buffer, Shelf Air |
|
$ 8.44 | |||||
| 24 | 5304531167 | Shelf Assembly, Cantilever, 1/2 Width, Glass, W/trim |
|
Immediately | $ 132.26 | ||||
| 25 | 5304536573 | Cover Assembly, Deli Pan, W/glass-rollers (Replaces: 5304530918) |
|
$ 120.81 | |||||
| 26 | 5304533699 | Crisper Pan Assy - Sd, 26 |
|
- | |||||
| 42 | 5304531177 | Support, Crisper, White, Rh |
|
Immediately | $ 4.80 | ||||
| 44 | FRPAPKRF | Frig Freshness Booster Refill |
|
Immediately | $ 15.60 | ||||
| 47 | 242081301 | Screw-shoulder |
|
- | |||||
| 48 | 242122102 | Channel, Shelf Mtg., Center |
|
$ 43.23 | |||||
| 49 | 5304530658 | Channel, Shelf Mtg., Lh |
|
$ 31.10 | |||||
| 62 | 5304533698 | Sd Deli Pan Assy, 62 |
|
- | |||||
| 64 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 90 | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| 137 | FPPWFU01 | Filter, Water, Wf-1, Frig Purepour |
|
Immediately | $ 80.38 | ||||
| 139 | 140156010054 | Manifold, Water Filter (Replaces: 5304524817) |
|
$ 30.57 | |||||
| 145 | 5304530996 | Support Assembly, Deli, Rh, W/roller |
|
Immediately | $ 140.81 | ||||
| 210 | 5304530987 | Housing, Water Filter |
|
Immediately | $ 11.57 | ||||
| 212 | 5304508016 | Roller, Crisper Pan |
|
Immediately | $ 9.42 | ||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 49.62 | |||||
| 145A | 5304530989 | Support, Deli, Lh |
|
$ 138.18 | |||||
| 24A | 5304531168 | Shelf Assembly, Cantilever, 1/4 Width, Glass, W/trim |
|
- | |||||
| 24B | 5304536906 | Cover Assembly, Crispers, W/glass-gasket (Replaces: 5304531040) |
|
$ 101.91 | |||||
| 42A | 5304531176 | Support, Crisper, White, Lh |
|
$ 4.80 | |||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122303 | Channel, Shelf Mtg., Side, Rh |
|
$ 48.54 | |||||
| NIA | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| NIA | 241953902 | Screw, Quad Hilo, #8-18 (Replaces: 241953906) |
|
Immediately | $ 17.11 |
