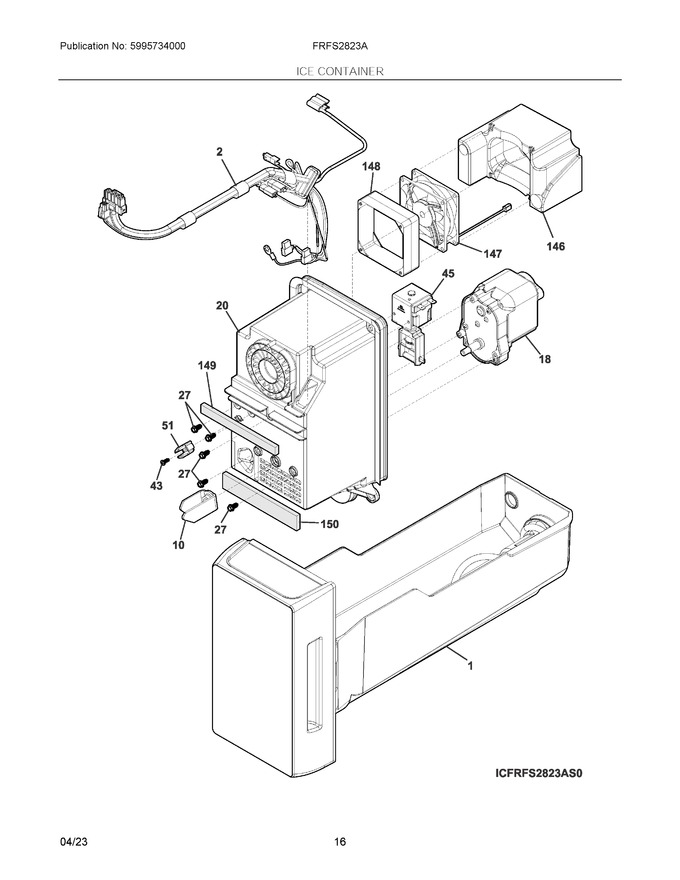

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304530694 | Ice Container, Assembly, W/moving Parts |
|
$ 178.11 | |||||
| 2 | 5304530732 | Harness, Wiring, Air Handler, W/evap Thrmistr |
|
Immediately | $ 61.73 | ||||
| 10 | 241829001 | Bar-drive |
|
$ 58.55 | |||||
| 18 | 5304527039 | Motor, Auger |
|
Immediately | $ 172.09 | ||||
| 20 | 140123513032 | Housing, Air Handler (Replaces: 5304530705) |
|
$ 58.10 | |||||
| 27 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 43 | 241641502 | Screw, Hilo Phil Pn, 8-18 X 3/8 |
|
$ 8.51 | |||||
| 45 | 241675707 | Solenoid, Assembly |
|
Immediately | $ 86.45 | ||||
| 51 | 242095501 | Pin-anti Twist Bkt Gen Ii Im |
|
Immediately | $ 20.56 | ||||
| 146 | 140063737047 | Support, Evaporator Fan (Replaces: 5304530679) |
|
Immediately | $ 16.35 | ||||
| 147 | 5304493604 | Fan Assembly, Motor, With Blade (Replaces: 242119401) |
|
Immediately | $ 90.55 | ||||
| 148 | 5304508063 | Grommet, Fan |
|
Immediately | $ 15.92 | ||||
| 149 | 242095415 | Gasket |
|
Immediately | $ 10.85 | ||||
| 150 | 242095423 | Gasket |
|
Immediately | $ 21.06 |
