SELECT A DIAGRAM

01 - Cover Sheet


02 - Freezer Door


03 - Refrigerator Door


04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Diagram

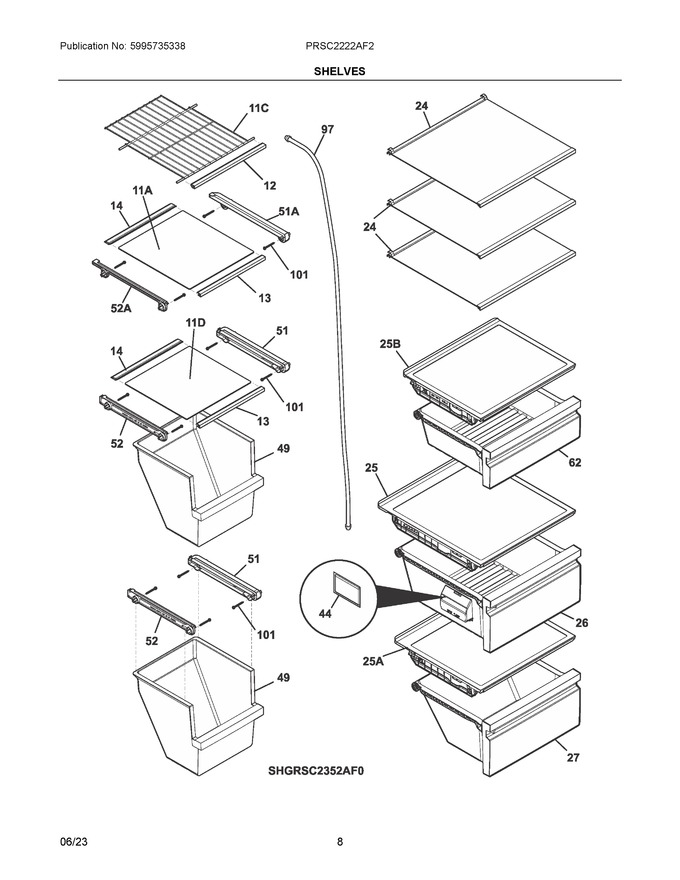

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304527117		Trim, Wire Shelf, Metalic, Freezer, Front		Appelez-nous	-
13	5304527114		Trim, Glass Shelf, Metalic, Freezer, Front				$ 99.35
14	5304527130		Trim, Freezer Shelf, Rear				$ 102.38
24	5304526916		Shelf Assembly, Glass, Metal Trim			Immediately	$ 155.47
25	140116198163		Crisper Cover, Assembly, Glass, Upper, W/glass-gasket   (Replaces: 5304533283)				$ 90.65
26	5304533286		Crisper Pan, Upper Assy, W/rollers, Trim			Immediately	$ 155.48
27	5304533287		Crisper Pan, Lower Assy, W/rollers, Trim			Immediately	$ 156.01
44	FRPAPKRF		Frig Freshness Booster Refill			Immediately	$ 15.60
49	5304533279		Basket, Sliding, Freezer				$ 61.05
51	5304526976		Hanger, Basket, Rh				$ 16.69
52	5304526977		Hanger, Basket, Lh				$ 16.69
62	5304533288		Deli Pan, Assembly, W/rollers-trim			Immediately	$ 159.50
97	242220119		Tube, Water, 97.5", Natural, Filter Base To, Secondary Valve			Immediately	$ 30.47
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 13.46
101A	241637202		Screw, Hex Sems Head, 8-18ab X 1-3/4				$ 5.31
11A	240443358		Shelf-freezer, Glass, Upper				$ 97.07
11C	809078201		Shelf, Pizza		Appelez-nous	-
11D	240443399		Shelf, Freezer, Glass, Lower				$ 101.63
25A	5304533284		Crisper Cover, Assembly, Glass, Lower, W/glass-gasket				$ 79.10
25B	5304533285		Deli Cover, Assembly, Glass, W/glass-gasket				$ 86.41
51A	241514701		Hanger-shelf Glass, Rh				$ 63.79
52A	241514801		Hanger-shelf Glass, Lh				$ 343.75
NIA	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 70.56
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 10.63

    View Diagram in Separate Window       Print Part List
