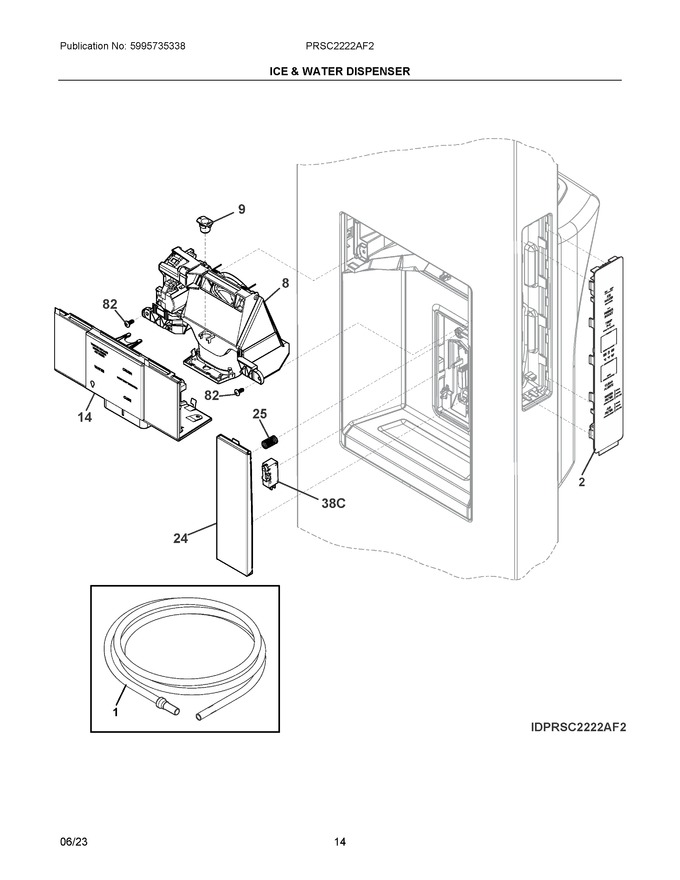

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 20.56 | ||||
| 2 | 5304534372 | User Interface, Assembly, Side Fzr Door |
|
Immediately | $ 136.05 | ||||
| 8 | 5304533269 | Dispenser Module, Ice & Water, Gray, W/door Harness |
|
Immediately | $ 172.94 | ||||
| 9 | 5304527100 | Guide, Water Tube, Dispenser |
|
$ 9.86 | |||||
| 14 | 5304533309 | User Interface, Assembly, Gray, Dispenser, W/housing-ovrly |
|
Immediately | $ 385.76 | ||||
| 24 | 5304533386 | Paddle Assembly, Dispenser, Stainless |
|
$ 73.67 | |||||
| 25 | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.11 | ||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 38C | 5304523072 | Switch, Disp Paddle |
|
Immediately | $ 46.06 | ||||
| NI | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 242294101 | Gasket, Ui Housing |
|
$ 16.05 | |||||
| NIA | 218976421 | Tube, Water, 27", Yellow, Valve, To Door |
|
$ 20.56 |
