View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

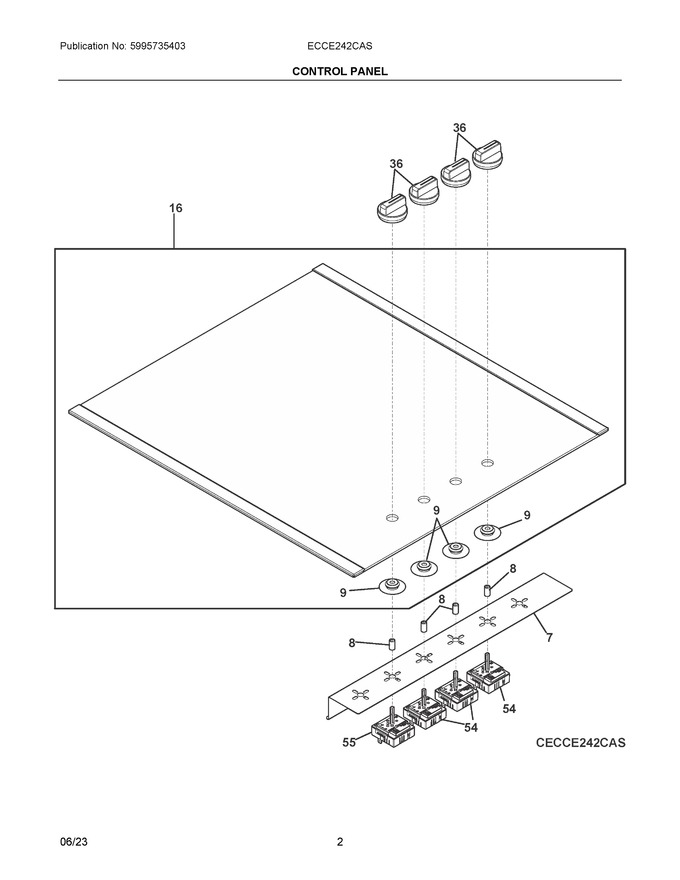

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | 387372600 | Bracket, Support, Switch Mtg |
|
- | |||||
| 8 | 5304515131 | Spacer, Silicone Seal, Switch Shaft |
|
Immediately | $ 160.02 | ||||
| 9 | 5304515130 | Bushing, Knob, Sealing |
|
Immediately | $ 91.15 | ||||
| 16 | 5304535473 | Smoothtop |
|
$ 377.07 | |||||
| 36 | 5304535474 | Knob, Control, Stainless |
|
$ 57.30 | |||||
| 54 | 5304526190 | Switch, Surface Heating, Single |
|
Immediately | $ 90.50 | ||||
| 55 | 5304527965 | Switch, Surface Heating, Dual |
|
Immediately | $ 100.56 | ||||
| NI | 131243700 | Screw, B4, 2 X 9, 5 (Replaces: 330447900) |
|
$ 3.36 | |||||
| NI | 5304536454 | Screw, Switch Mtg., M4 X 7 (Replaces: 319224001) |
|
$ 2.98 |
