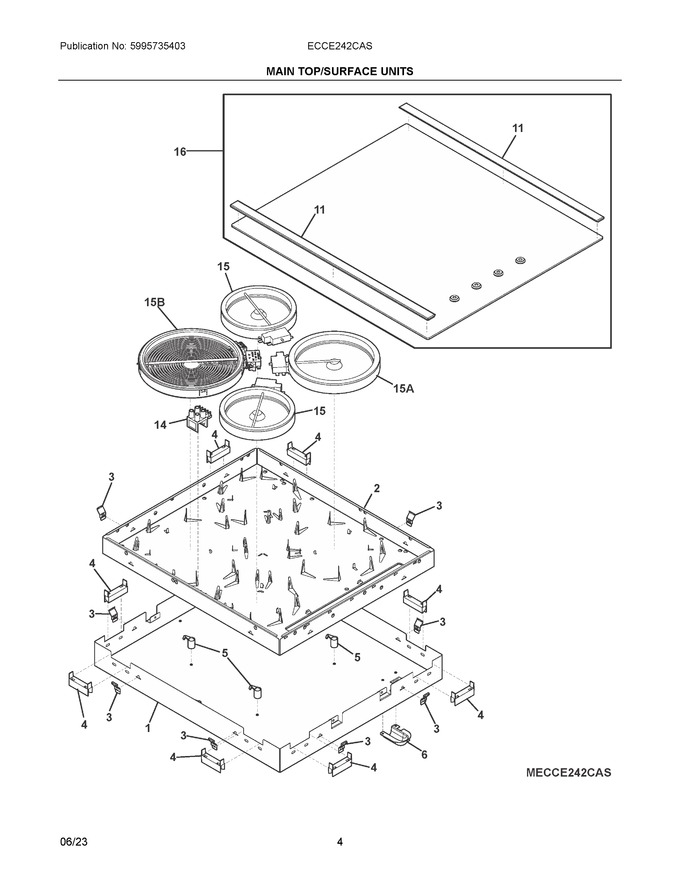

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304535471		Box		Appelez-nous	-
2	305554400		Box, Inner		Appelez-nous	-
3	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
4	387627600		Spacer, Burner Box, Plastic				$ 12.71
5	5304534149		Bracket, Support, Plastic		Appelez-nous	-
6	5304534148		Cover, Elbow, Box & Cable		Appelez-nous	-
11	305370704		Trim, Smoothtop, Stainless		Appelez-nous	-
12	387683300		Bracket, Surface Element			Immediately	$ 13.42
13	387372900		Spring, Surface Element				$ 15.17
14	387812004		Light Assembly, Indicator, Hot Surface				$ 50.32
15	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
16	5304535473		Smoothtop				$ 377.07
26	5304538915		Bracket, Retainer, Main Top   (Replaces: 5304522050)			Immediately	$ 5.41
15A	374063621		Element, Surface, 7", 1800w				$ 104.06
15B	5304535369		Element, Surface, 5"/8", 750w/2200w   (Replaces: 374064021)				$ 144.59
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NI	5304535472		Harness, Wiring, Box & Cable		Appelez-nous	-
NI	5304522496		Harness, Wiring, Main		Appelez-nous	-
NI	305309608		Screw, M4		Appelez-nous	-
NI	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
NI	202855101		Holder, Cable				$ 1.42
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305338602		Screw		Appelez-nous	-
NIA	305376101		Screw, Bracket, Surface Element		Appelez-nous	-
NIA	5304462994		Screw, 8-32 X 5/16		Appelez-nous	-
