01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Optional Parts (not Included)

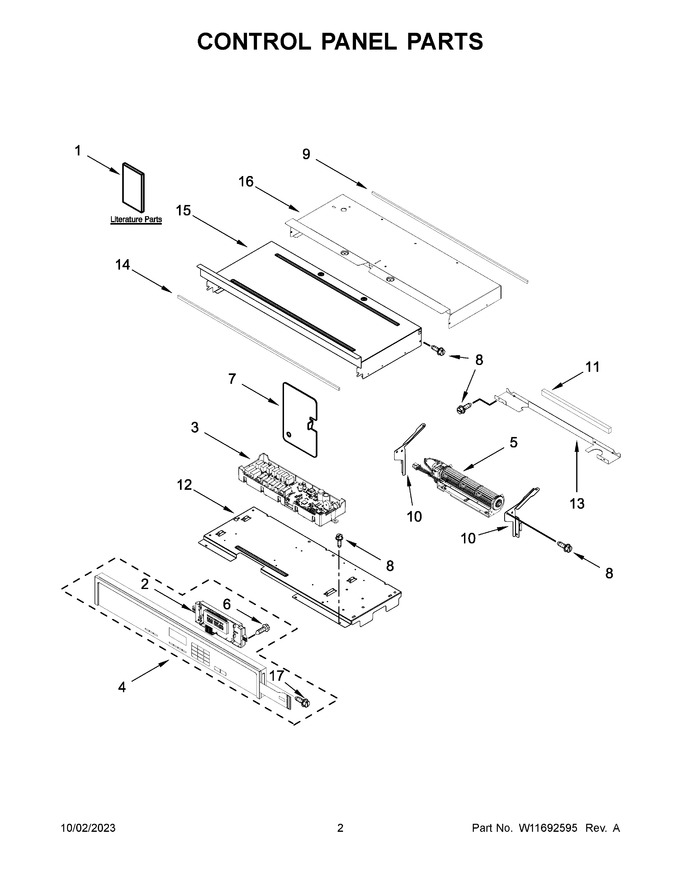

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11656312		Owner's Manual		Appelez-nous	-
2	W10803991		Interface (maxwell), User Board   (Replaces: W10752315)			Immediately	$ 360.04
3	W11649136		Control, Maxwell   (Replaces: W11556520)			Immediately	$ 318.65
4	W11659257		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W11468028)				$ 464.05
5	W11598119		Blower   (Replaces: W11397930)			Immediately	$ 332.78
6	7101P40360		Screw		Appelez-nous	-
7	W11533682		Cover, Wifi		Appelez-nous	-
8	7101P42660		Screw		Appelez-nous	-
9	W10728475		Gasket, Rubber				$ 32.68
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 6.98
12	W11179509		Tray, Electronic		Appelez-nous	-
13	W11166802		Divider, Chassis Back		Appelez-nous	-
14	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
15	W11821591		Cover, 30 In Chassis Top Front   (Replaces: W11244445)		Appelez-nous	-
16	W11223325		Cover, 30 In Chassis Top Back				$ 73.52
17	W11602625		Screw (black)   (Replaces: W11339492)				$ 12.62
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11553919		Quick Start Guide		Appelez-nous	-
1B	W11600302		Tech Sheet		Appelez-nous	-
NI	W10655464		Bracket, Harness				$ 34.89
NI	W11499329		Harness, Main				$ 153.44
NI	W11233570		Harness, Console			Immediately	$ 201.14
NI	W10487999		Clip, Harness				$ 18.10
NI	4448664		Clamp, Conduit				$ 18.35
NI	W11157775		Harness, Eol (mrc)   (Replaces: W10409840)				$ 198.59
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	4450800		Screw, Grounding				$ 11.55
NI	W11727826		Harness, Door Latch   (Replaces: W11264646)				$ 52.97
NI	W11607072		Bag, Hardware   (Replaces: W11547720)			Immediately	$ 12.92
