01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts
04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

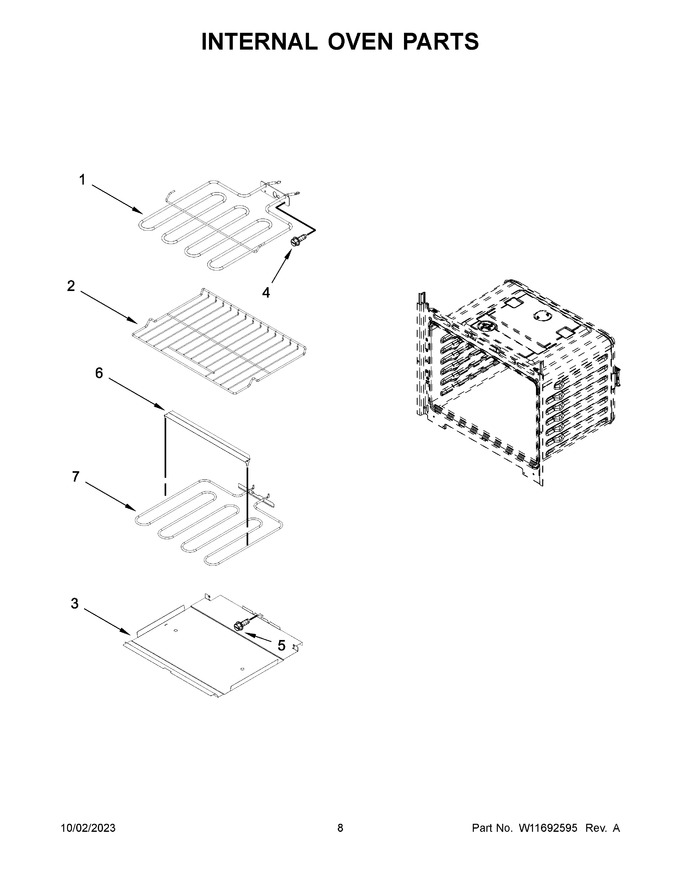

| 1 | W11617232 | Element, Broil (Replaces: W11238160) |
|
Immediately | $ 112.61 | ||||
| 2 | W11218798 | Rack, Oven (Replaces: W11122597) |
|
Immediately | $ 307.16 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 167.85 | |||||
| 4 | 7101P43460 | Screw |
|
- | |||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W10282957 | Crossbar, Hidden Bake Tray |
|
$ 40.69 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W11292248) |
|
Immediately | $ 92.28 |
