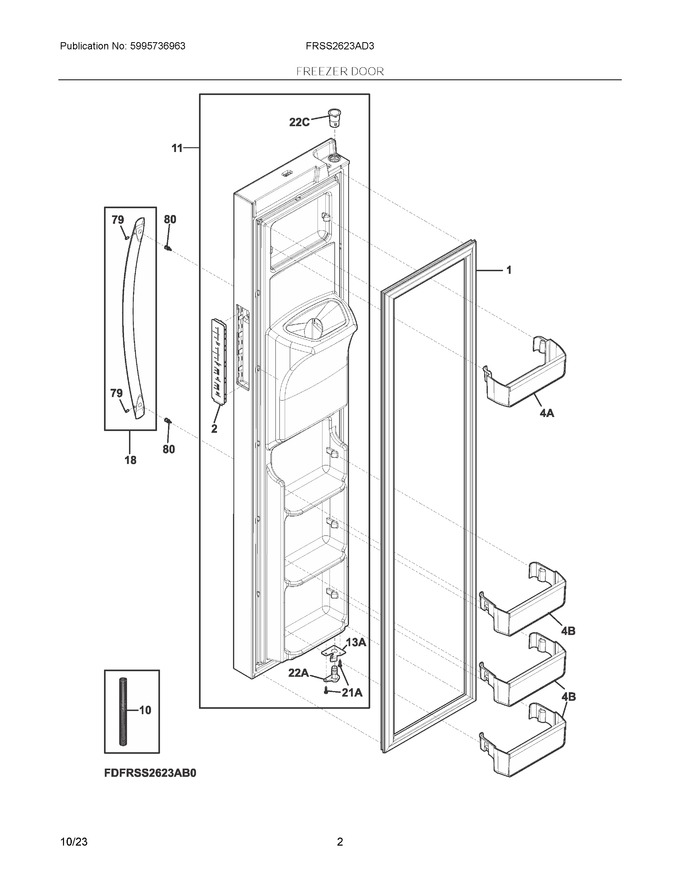

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241786014 | Freezer Door Gasket, Grey, Magnetic (Replaces: 241786006) |
|
$ 95.17 | |||||
| 2 | 5304526171 | User Interface, Assembly, Black Stainless, Side Control, W/pcb-overlay |
|
$ 256.33 | |||||
| 3 | 5304526160 | Overlay, Side Control, Black Stainless |
|
- | |||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 18.57 | |||||
| 11 | 5304526135 | Door Assembly, Freezer, Black Stainless, Complete |
|
- | |||||
| 18 | 5304513386 | Handle, Door, Black Stainless, W/set Screws |
|
$ 166.94 | |||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 5304527380 | Stop, Door, Black, Freezer |
|
$ 15.17 | |||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 5304532161 | Bushing, Door Closer, Lower, Freezer |
|
$ 4.35 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 4A | 5304536364 | Bin Assembly, Pseudo, Upper (Replaces: 5304525907) |
|
$ 25.80 | |||||
| 4B | 5304536365 | Bin Assembly, Pseudo, Lower (Replaces: 5304525908) |
|
Immediately | $ 25.65 | ||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 17.72 | |||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 20.56 |
