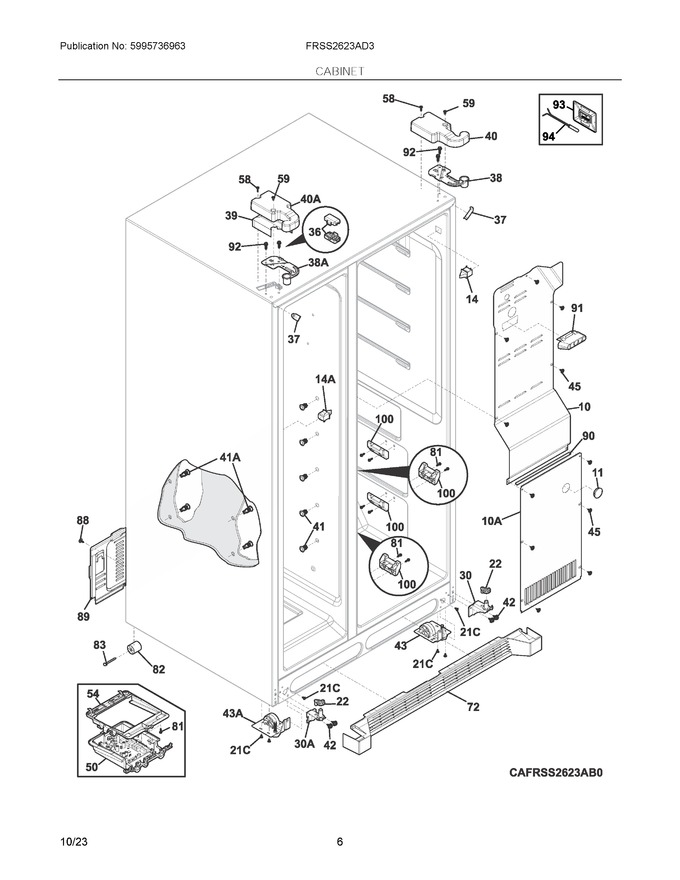

04 - Cabinet


05 - Shelves


06 - Controls


07 - System


08 - Ice & Water Dispenser


09 - Ice Container


10 - Ice Maker


11 - Wiring Schematic


12 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	240435912		Cover-air Duct				$ 123.23
11	5303208309		Plug-hole, Factory Test				$ 45.50
14	8582405058057		Switch, Light/lamp   (Replaces: 240505804)			Immediately	$ 8.42
22	5303918892		Plate, Door Closer, Black   (Replaces: 5304525995)				$ 30.08
30	5304532613		Hinge Assembly, Rh, Lower, W/hinge Pin   (Replaces: 5304525964)			Immediately	$ 38.57
36	5304526079		Cover, Hinge Harness, Upper		Appelez-nous	-
37	5304519617		Trim-cabinet Corner, Black		Appelez-nous	-
38	5304525957		Bracket, Hinge, Rh Upper				$ 100.11
39	5304526087		Shield, Hinge Cover, Lh Upper, Freezer				$ 24.26
40	5304526125		Cover, Hinge, Black, Rh Upper		Appelez-nous	-
41	241550701		Grommet-shelf Mtg, .96" Long				$ 18.20
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304525901		Roller Assembly, Static, Rh, W/leveling Leg				$ 26.54
45	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
50	5304532180		Power Board, Assembly, Main, W/housing			Immediately	$ 282.11
54	807854301		Support, Housing, Main Board				$ 45.36
58	241500305		Screw, Hex Head, #8-18x5/8   (Replaces: 241853202)				$ 3.03
59	241548003		Screw, 10-32 X 3/8				$ 3.03
72	5304537063		Grille/kickplate, Black   (Replaces: 5304526093)				$ 27.63
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
88	241500305		Screw, Hex Washer Head, 8-18ab X 0.625   (Replaces: 241500304)				$ 3.03
89	5304520905		Cover Assembly, Access, Metal			Immediately	$ 74.03
90	218249810		Seal Coil, Cover		Appelez-nous	-
91	240380101		Duct-ice Maker				$ 75.08
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
93	5304508041		Cover, Thermistor				$ 11.92
94	5303918775		Thermistor Kit, Temperature, Ntc, W/connectors			Immediately	$ 23.74
100	5304525909		Support, Crisper Cover			Immediately	$ 10.62
101	242157801		Cover, Tubing, Eps Block				$ 23.13
137	5304532189		Plate, Strike, Black		Appelez-nous	-
10A	808217503		Cover-evap Coil, Lower   (Replaces: 808217502)				$ 27.75
14A	241547902		Switch-light/lamp			Immediately	$ 23.25
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
30A	5304532614		Hinge Assembly, Lh, Lower, W/hinge Pin   (Replaces: 5304525965)				$ 35.14
38A	5304525958		Bracket, Hinge, Lh Upper				$ 28.83
40A	5304526126		Cover, Hinge, Black, Lh Upper		Appelez-nous	-
41A	241550801		Grommet-shelf Mtg, 1.40" Long				$ 63.70
43A	5304525902		Roller Assembly, Static, Lh, W/leveling Leg				$ 26.54
NI	5303321321		Paint, Touch-up, Black			Immediately	$ 21.97
NI	240396802		Clamp, Tube/wiring, Nylon, Black/natural		Appelez-nous	-
NIA	5303209814		Nut, "u" Type, 8-15a, Fan Mtr Mtg		Appelez-nous	-
