Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303307802 Wrapper-upper Appelez-nous -
6 5303289530 Louver W/ Handle Appelez-nous -
8 5303289531 Louver Appelez-nous -
9 5303289529 Louver-vertical (2) Appelez-nous -
12 5303285479 Filter Appelez-nous -
17 5303296648 Front W/ Louvers Appelez-nous -
19 5303289571 Dial Plate Appelez-nous -
20 5303303112 Knob-control Appelez-nous -
21 5303303114 Knob-slide Appelez-nous -
27 5303289570 Nameplate Appelez-nous -
31 5303286163 Clip-wrapper, Lower Appelez-nous -
39 134178901 Screw, (2), Front   (Replaces: 5303293767) Special Order $ 14.89

47 5303285477 Link-louvers Horiz Appelez-nous -
48 5303285476 Link-louvers Vertical Appelez-nous -
51 5303285465 Knob-leveling Appelez-nous -
52 5303285466 Screw-knob, Level Appelez-nous -
53 5303289568 Button, Lock, Front, (2) Appelez-nous -
54 5303303209 Wrapper-lower Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

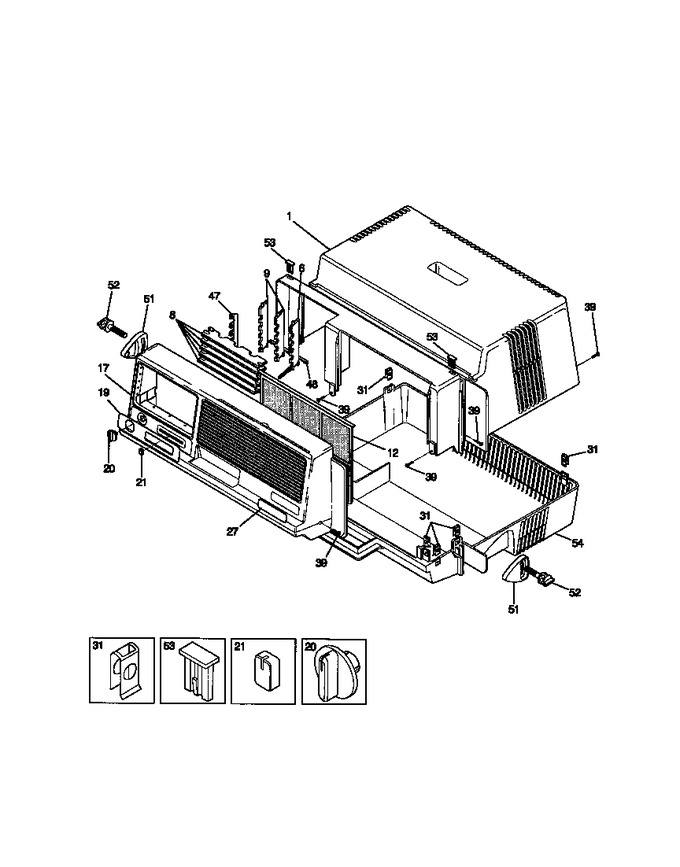

Diagram for FAB067W7B1
