Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303285447 Fan Blade & Clamp Appelez-nous -
2 3202975 Screw Appelez-nous -
3 5303285446 Shroud Appelez-nous -
8 5303295746 Motor-fan Appelez-nous -
10 5303286382 Bulkhead Appelez-nous -
11 5303285448 Blower Wheel Appelez-nous -
12 5303012110 Clamp - Blower Wheel Special Order $ 8.14

15 5303285449 Scroll Appelez-nous -
17 5308011040 Clamp - Fan Blade Appelez-nous -
18 5303270042 Deflector-shroud Appelez-nous -
20 5303286383 Plate, Scroll Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

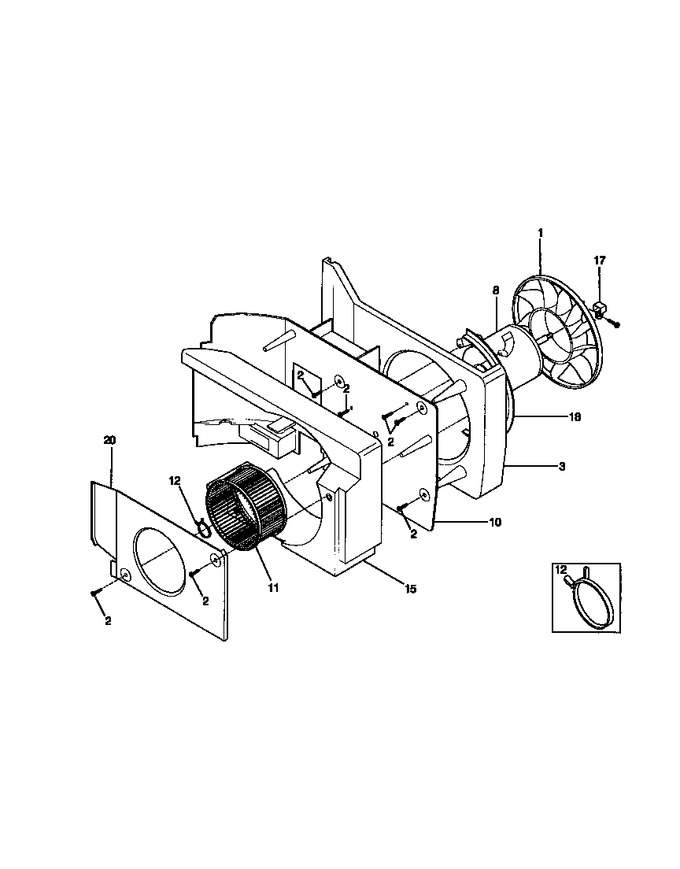

Diagram for FAB067W7B1
