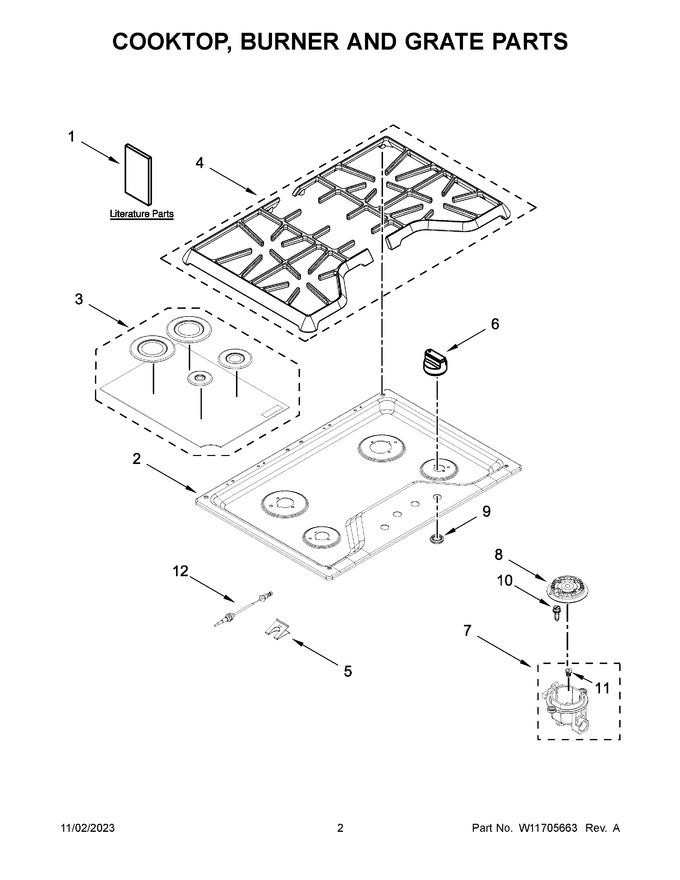

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11468901 | Owner's Manual |
|
- | |||||
| 2 | W10597073 | Cooktop (stainless) |
|
$ 337.28 | |||||
| 3 | WPW10597129 | Burner Cap Kit (black) (Replaces: W10597129) |
|
$ 109.15 | |||||
| 4 | W11413073 | Grate Assembly (includes Both Grates) (black) (Replaces: W11241677) |
|
$ 322.12 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 65.93 | |||||
| 6 | W11729014 | Knobs, Cooktop (stainless) (Replaces: W10853672) |
|
$ 56.75 | |||||
| 7 | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 33.26 | |||||
| 8 | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 85.50 | |||||
| 9 | W11206740 | Black (Replaces: W10625915) |
|
$ 7.81 | |||||
| 10 | W11676349 | Screw, Burner Rail (m4) (Replaces: 8286921) |
|
Immediately | $ 12.65 | ||||
| 11 | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 77.40 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front And Right Front) (Replaces: W11439331) |
|
$ 52.13 | |||||
| 11A | W10791073 | Orifice (center, Main) (Replaces: W10609592) |
|
$ 80.11 | |||||
| 11B | W10791079 | Orifice (right Front) (Replaces: W10409144) |
|
$ 80.11 | |||||
| 11C | W10652710 | Orifice (left Front And Right Front) |
|
$ 23.37 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear And Right Rear) (Replaces: W11439332) |
|
Immediately | $ 52.19 | ||||
| 1A | W11466946 | Quick Start Guide |
|
- | |||||
| 7A | W10609591 | Holder, Orifice (15k) (left Rear) |
|
$ 62.03 | |||||
| 7B | W10597159 | Holder, Orifice (12k) (right Front) |
|
$ 62.10 | |||||
| 7C | W10594402 | Holder,orifice (9.1k) (right Rear) |
|
$ 61.77 | |||||
| 8A | WP8286815 | Head, Burner (left Front And Right Front) (Replaces: 8286815) |
|
Immediately | $ 66.94 | ||||
| 8B | WP8286814 | Head, Burner (left Front, Left Rear & Right Front) (Replaces: 8286814) |
|
$ 106.79 | |||||
| NI | 7101P06260 | Screw (used For Tie Down Bracket) |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 28.58 | |||||
| NI | W10676661 | Kit, Lp Conversion |
|
$ 36.11 | |||||
| NI | W10392003 | Cord, Power |
|
$ 138.57 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 3801F93551 | Bracket, Tie Down |
|
- | |||||
| NI | WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.47 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | |||||
| NI | W11706305 | Harness, Switch (Replaces: W11665048) |
|
- |
