02 - Cooktop, Burner And Grate Parts

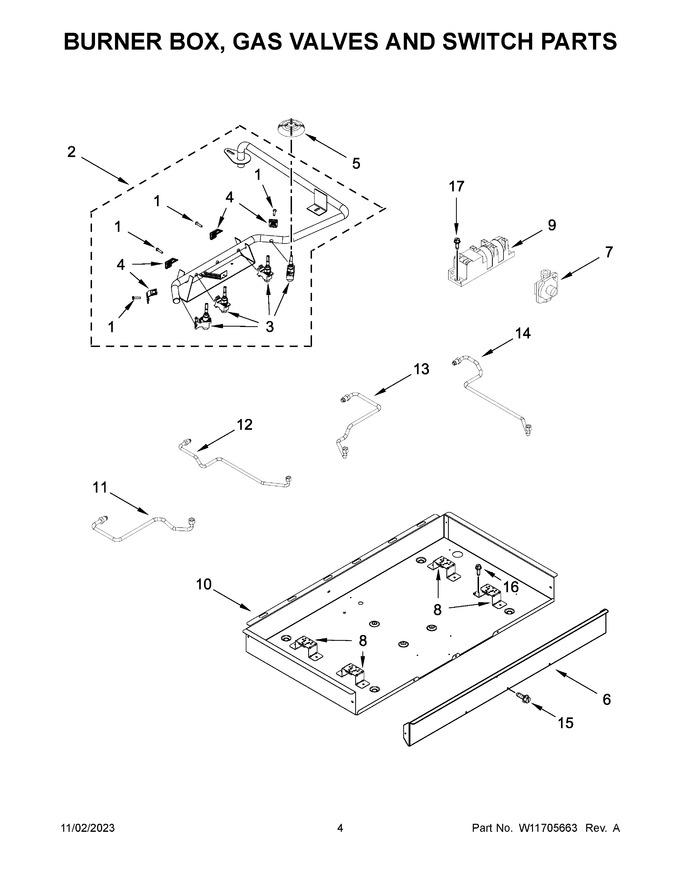

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw   (Replaces: W10743274)				$ 10.15
2	W11706307		Manifold Assembly   (Replaces: W11673569)		Appelez-nous	-
3	W11706309		Valve, Single (left Front)   (Replaces: W11672769)		Appelez-nous	-
4	8287055		Bracket, Single Valve				$ 65.54
5	W11768651		Seal, Switch Shaft   (Replaces: W11507167)				$ 17.40
6	W10721889		Panel, Front   (Replaces: W10614950)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 177.34
8	W10594429		Bracket, Orifice Holder				$ 20.00
9	W11693498		Module, Spark   (Replaces: W10475148)				$ 90.61
10	W11706310		Box, Burner   (Replaces: W11678088)		Appelez-nous	-
11	W10566287		Tubing, Gas Burner (left Front)		Appelez-nous	-
12	W10566288		Tubing, Gas Burner (left Rear)		Appelez-nous	-
13	W10566290		Tubing, Gas Burner (right Front)		Appelez-nous	-
14	W10566289		Tubing, Gas Burner (right Rear)		Appelez-nous	-
15	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
16	W10443110		Screw			Immediately	$ 13.07
17	7101P42660		Screw		Appelez-nous	-
3A	W11706289		Valve, Single (left Rear)   (Replaces: W11672768)		Appelez-nous	-
3B	W11706290		Valve, Single (right Front)   (Replaces: W11672770)		Appelez-nous	-
NI	W10724598		Stainless Premium Knob Kit (qty 5)		Appelez-nous	-
