Burner Box, Gas Valves And Switch Parts

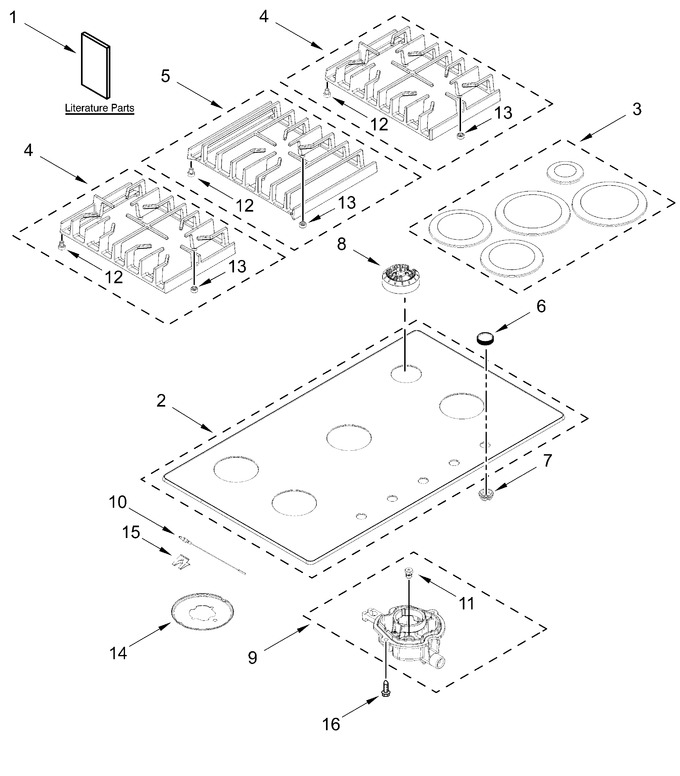

Cooktop, Burner And Grate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | ARI4741983F61CAC445F12C0C1FD1B613C1 | Literature Parts |
|
- | |||||
| 2 | W11754690 | Glass Cooktop Assembly (black) (Replaces: W11566374) |
|
$ 846.86 | |||||
| 3 | W11704091 | Burner Cap Kit, Black (includes Five Caps) (Replaces: W11567154) |
|
- | |||||
| 4 | W11704092 | Grate, Side (includes 1 Grate) (Replaces: W11573789) |
|
$ 288.00 | |||||
| 5 | W11704094 | Grate, Center (Replaces: W11604889) |
|
- | |||||
| 6 | W11704127 | Knob, Cooktop (stainless) (Replaces: W11566347) |
|
- | |||||
| 7 | W11704130 | Grommet (Replaces: W11641507) |
|
- | |||||
| 8 | W11704088 | Flame Spreader (Replaces: W11352194) |
|
- | |||||
| 9 | W11704128 | Holder, Orifice (9.1k) (Replaces: W11567148) |
|
- | |||||
| 10 | W11702865 | Wiring, Electrode (440mm) (Replaces: W11640975) |
|
$ 17.25 | |||||
| 11 | W11718108 | Orifice (Replaces: W11631338) |
|
- | |||||
| 12 | W11703399 | Foot Pad, Grate (outer) (Replaces: W10598131) |
|
Immediately | $ 12.16 | ||||
| 13 | W11684734 | Foot Pad, Grate (inner) |
|
- | |||||
| 14 | W11704132 | Bezel, Burner (Replaces: W11564390) |
|
- | |||||
| 15 | W11684564 | Electrode, Spring (Replaces: W10827923) |
|
Immediately | $ 10.71 | ||||
| 16 | W11699921 | Screw (Replaces: W10758282) |
|
$ 12.66 | |||||
| W11704159 | Harness, Switch (Replaces: W11632717) |
|
- | ||||||
| 7101P06260 | Screw |
|
- | ||||||
| ARI3770015A4B07CA67C806D98841D12734 | (used For Tie Down Bracket) |
|
- | ||||||
| ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | ||||||
| W11718107 | Orifice (Replaces: W11364991) |
|
- | ||||||
| W11718110 | Orifice (Replaces: W11567153) |
|
- | ||||||
| W11703343 | Orifice (Replaces: W11610057) |
|
- | ||||||
| W11703398 | Wiring, Electrode (636mm) (Replaces: W11642338) |
|
$ 17.31 | ||||||
| W11702576 | Holder, Orifice (5k) (Replaces: W11567151) |
|
- | ||||||
| ARIA12C7E5D311C54B1AACBC1820DF34957 | (right Front) |
|
- | ||||||
| W11704129 | Holder, Orifice (15k) (Replaces: W11567152) |
|
- | ||||||
| ARI7A67B14AEA62F6D2A04BCF7D52CA12EE | (center) |
|
- | ||||||
| 3801F93551 | Bracket, Tie Down |
|
- | ||||||
| W11702578 | Holder, Orifice (18k) (Replaces: W11567144) |
|
- | ||||||
| ARI283693F3486669333C7F1EE938CD8A5B | (right Rear) |
|
- | ||||||
| W11531098 | Flame Spreader (Replaces: W11352197) |
|
$ 69.19 | ||||||
| ARI366F739729E30F8F054E7BD9138DF341 | (center And Right Front) |
|
- | ||||||
| W11531096 | Flame Spreader (Replaces: W11352193) |
|
$ 70.17 | ||||||
| ARI130620F5738F97FA53E648D69A4CE80B | (left Front, Left Rear) |
|
- | ||||||
| W11635508 | Quick Start Guide |
|
- | ||||||
| W11613933 | Owner's Manual |
|
- | ||||||
| W11704158 | Bezel, Burner (Replaces: W11564389) |
|
- | ||||||
| W11704157 | Bezel, Burner (Replaces: W11564388) |
|
- | ||||||
| WP3400015 | Screw, Grounding (Replaces: 3400015) |
|
$ 6.47 | ||||||
| W11702867 | Lp Conversion Kit (Replaces: W11573776) |
|
- | ||||||
| W10132200 | Relief, Strain |
|
- | ||||||
| W10392003 | Cord, Power |
|
$ 138.57 | ||||||
| WP8286642 | Tape, Foam (Replaces: 8286642) |
|
Immediately | $ 105.67 | |||||
| 16515 | Clip, Harness (Replaces: 313438) |
|
$ 17.60 | ||||||
| W11637584 | Harness, Spark Module (Replaces: W10878749) |
|
$ 28.58 |
