Burner Box, Gas Valves And Switch Parts

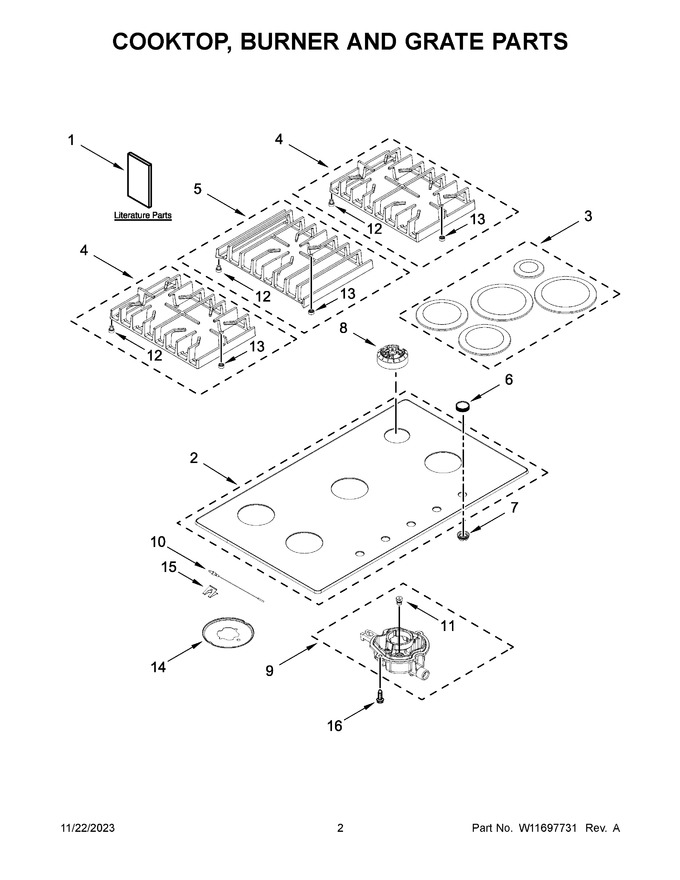

Cooktop, Burner And Grate Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11613933		Owner's Manual		Appelez-nous	-
2	W11754690		Glass Cooktop Assembly (black)   (Replaces: W11566374)				$ 846.86
3	W11704091		Burner Cap Kit (black (includes Five Caps))   (Replaces: W11567154)		Appelez-nous	-
4	W11704092		Grate, Side (includes 1 Grate)   (Replaces: W11573789)				$ 288.00
5	W11704094		Grate, Center   (Replaces: W11604889)		Appelez-nous	-
6	W11704127		Knobs, Cooktop (stainless)   (Replaces: W11566347)		Appelez-nous	-
7	W11704130		Grommet   (Replaces: W11641507)		Appelez-nous	-
8	W11531098		Flame Spreader (left Rear)   (Replaces: W11352197)				$ 69.19
9	W11704128		Holder, Orifice (9.1k) (left Front And Left Rear)   (Replaces: W11567148)		Appelez-nous	-
10	W11702865		Wiring, Electrode (440mm)   (Replaces: W11640975)				$ 17.25
11	W11718108		Orifice (right Front)   (Replaces: W11631338)		Appelez-nous	-
12	W11703399		Foot Pad, Grate (outer)   (Replaces: W10598131)			Immediately	$ 12.16
13	W11684734		Foot Pad, Grate (inner)		Appelez-nous	-
14	W11704132		Bezel, Burner (left Front And Left Rear)   (Replaces: W11564390)		Appelez-nous	-
15	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 10.71
16	W11699921		Screw   (Replaces: W10758282)				$ 12.66
10A	W11703398		Wiring, Electrode (636mm)   (Replaces: W11642338)				$ 17.31
11A	W11703343		Orifice (right Rear)   (Replaces: W11610057)		Appelez-nous	-
11B	W11718110		Orifice (right Front)   (Replaces: W11567153)		Appelez-nous	-
11C	W11718107		Orifice (left Rear)   (Replaces: W11364991)		Appelez-nous	-
14A	W11704157		Bezel, Burner (center And Right Front)   (Replaces: W11564388)		Appelez-nous	-
14B	W11704158		Bezel, Burner (right Rear)   (Replaces: W11564389)		Appelez-nous	-
1A	W11635508		Quick Start Guide		Appelez-nous	-
8A	W11531096		Flame Spreader (left Front And Right Rear)   (Replaces: W11352193)				$ 70.17
8B	W11704088		Flame Spreader (right Rear)   (Replaces: W11352194)		Appelez-nous	-
9A	W11702578		Holder, Orifice (18k) (right Rear)   (Replaces: W11567144)		Appelez-nous	-
9B	W11704129		Holder, Orifice (15k) (right Front)   (Replaces: W11567152)		Appelez-nous	-
9C	W11702576		Holder, Orifice (5k) (left Rear)   (Replaces: W11567151)		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 6.47
NI	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 105.67
NI	16515		Clip, Harness   (Replaces: 313438)				$ 17.60
NI	W11702867		Lp Conversion Kit   (Replaces: W11573776)		Appelez-nous	-
NI	7101P06260		Screw (for Tie Down Bracket)		Appelez-nous	-
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11637584		Harness, Spark Module   (Replaces: W10878749)				$ 28.58
NI	W11704159		Harness, Switch   (Replaces: W11632717)		Appelez-nous	-
NI	W10392003		Cord, Power				$ 138.57
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	3801F93551		Bracket, Tie Down		Appelez-nous	-
