01 - Cover Sheet

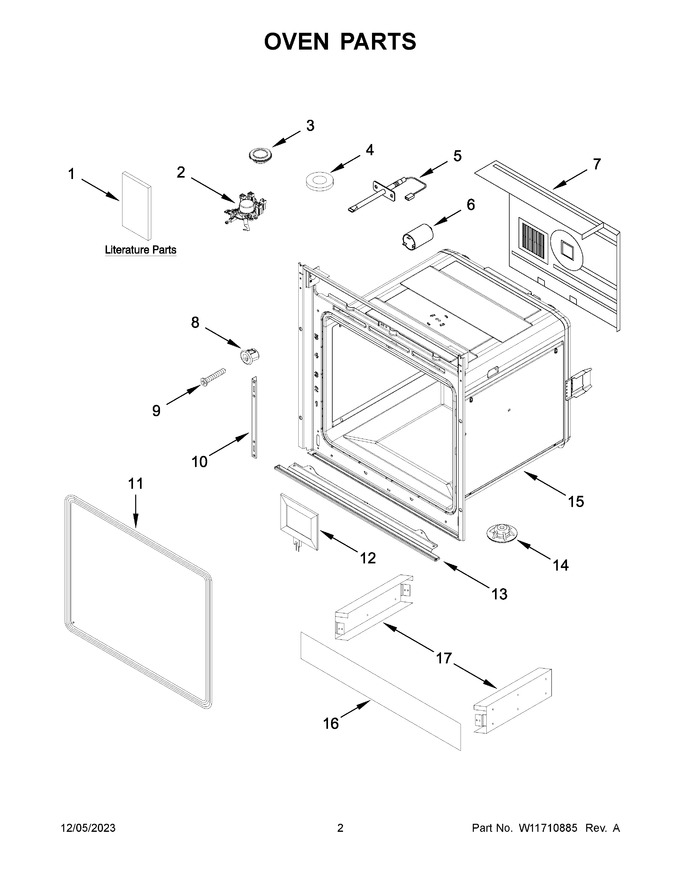

02 - Oven Parts
03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11608852 | Instructions, Installation |
|
- | |||||
| 2 | W11347847 | Latch, Door |
|
Immediately | $ 273.86 | ||||
| 3 | W11509867 | Cap |
|
- | |||||
| 4 | W11594958 | Washer, Teflon (Replaces: W11594218) |
|
- | |||||
| 5 | W11790987 | Probe, Oven Temperature (Replaces: W11594207) |
|
$ 138.98 | |||||
| 6 | W10549523 | Filter, Line Noise |
|
Immediately | $ 133.37 | ||||
| 7 | W11683048 | Panel, Rear Oven (Replaces: W11681244) |
|
- | |||||
| 8 | W10578780 | Bumper |
|
$ 20.04 | |||||
| 9 | W10519818 | Kit, Oven Screws |
|
$ 13.42 | |||||
| 10 | W11581007 | Hinge, Running Mechanism |
|
- | |||||
| 11 | W10518387 | Gasket, Door |
|
$ 158.97 | |||||
| 12 | W11348087 | Lamp, Halogen 25 Watt (with Gasket) |
|
$ 108.06 | |||||
| 13 | W10517979 | Trim, Lower |
|
Immediately | $ 59.66 | ||||
| 14 | W10545973 | Foot, Level Oven |
|
- | |||||
| 15 | ARI221486ECAEC93F8B8C6C8EF9CFFD9E68 | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | W11683044 | Panel, Trim (Replaces: W11681221) |
|
$ 245.07 | |||||
| 17 | W11594960 | Bracket, Panel (Replaces: W11594209) |
|
- | |||||
| 1A | W11609950 | Manual, Owner's |
|
- | |||||
| 1B | W11568131 | Sheet,tech |
|
- | |||||
| NI | W11594210 | Screw Kit, Insert Panel |
|
Immediately | $ 51.33 | ||||
| NI | W11348047 | Kit, Power Cord (no Plug) |
|
$ 143.79 | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W11594182 | Harness, Main |
|
$ 332.95 |
