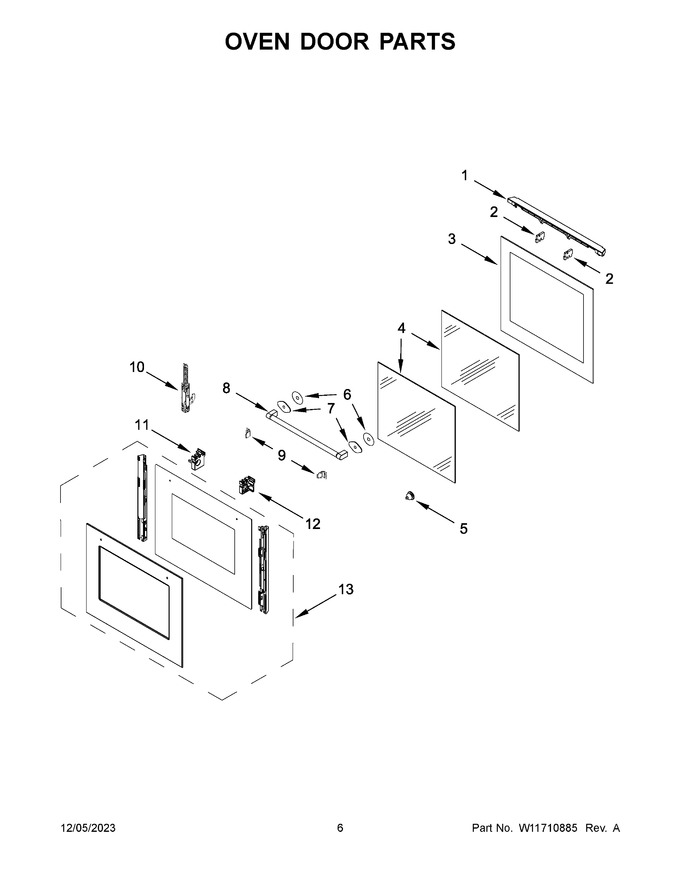

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10518369		Vent, Door Trim Top			Immediately	$ 107.69
2	W10518307		Spacer, Door Trim Top				$ 18.83
3	W11236916		Assembly, Inner Door Glass   (Replaces: W10750365)				$ 345.42
4	W11778507		Glass, Door Inner   (Replaces: W10518376)		Appelez-nous	-
5	W10519004		Spacer, Oven Door Glass				$ 20.03
6	W11236907		Washer, Door Handle   (Replaces: W10410709)				$ 15.63
7	W10260705		Spacer, Rubber		Appelez-nous	-
8	W11236906		Handle, Door   (Replaces: W10713236)				$ 280.84
9	481010387617		Support, Oven Door Glass				$ 99.09
10	W11683045		Hinge, Door   (Replaces: W11681227)		Appelez-nous	-
11	W11509863		Support, Oven Glass				$ 120.35
12	W10518384		Support, Oven Door Glass				$ 104.06
13	W11681228		Assembly, Outer Door			Immediately	$ 469.87
